Infortrend EonStor GSe Pro 1008 Storage - System Overview

Additional Information

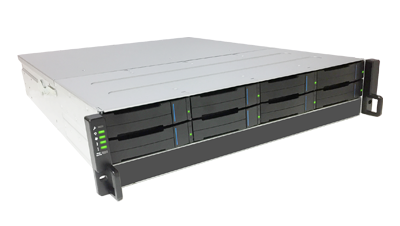

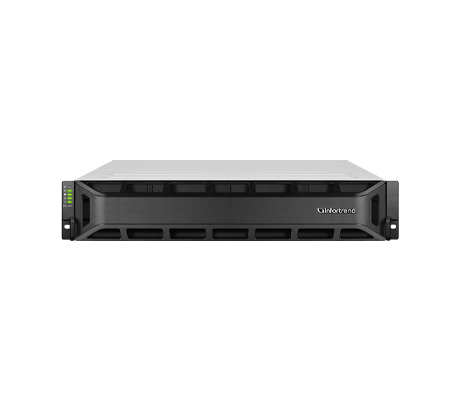

Infortrend GSe Pro 1008 front view

The Infortrend GSe Pro 1008 delivers 4GB by default, which can scale up to 16GB of DDR3 cache memory. It’s equipped with either one or two 250W hot-swappable PSUs, depending on the model. There are 4x onboard 1GbE host ports (RJ45) located on the rear of the platform, ensuring versatile network connectivity. This unit does not offer additional storge expansion through JBOD expansion enclosures.

INFORTREND EONSTOR GSE PRO 1000 MODELS

Infortrend EonStor GSe Pro 1004SP/RP
  • 1U, 4x storage bays, single or redundant PSU
Infortrend EonStor GSe Pro 1008SP/RP
  • 2U, 8x storage bays, single or redundant PSU

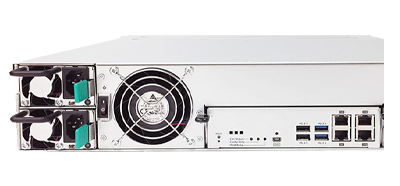

Infortrend EonStor GSe Pro 1008 Storage rear view

It offers seamless file sharing across Windows, Mac, and Linux systems and is well-suited for tasks like file backup, synchronization, and cloud integration via a simple, user-friendly interface. A smart cloud integration feature, EonCloud Gateway, is built into the system to connect with major cloud services like Amazon S3, Microsoft Azure, Google Cloud, and others. This allows for automatic file or storage block synchronization between local and cloud environments, streamlining backup and data sharing processes.

A number of RAID options are available to ensure performance or data resiliency. Administrators can manage the storage system using EonOne, a centralized web-based tool that makes it easy to oversee performance, adjust configurations, and control multiple storage units from one interface. It supports a wide range of operating systems, including Microsoft Windows Server, Red Hat Enterprise Linux, MacOS X, and VMware.

Infortrend EonStor GSe Pro 1008 Storage - Specifications

Processor - 1 Socket

  • Intel Atom 4-Core
  • Up to 8x threads

Controller

  • Single

Cache Memory

  • DDR3 4GB, up to 16GB

Supported Drives

  • 2.5" SATA SSD
  • 3.5" 6Gb/s SATA 7,200 RPM HDD

Max. Drive Number

  • 4

Max. SSD Cache Pool (Block Level)

  • 1TB

Chassis

    1U Enclosure

    Height: 88mm

    Width: 449mm

    Depth: 450mm

Power Supply

    GSe Pro 1004SP

  • 1x 250W
  • GSe Pro 1004RP

  • 2x 250W

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)

Operating Systems

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • MacOS X
  • VMware

Infortrend EonStor GSe Pro 1008 Storage - Documentation
