Infortrend EonStor GSe Pro 105 Storage

Additional Information

For limited office space environments, the Infortrend EonStor GSe Pro 105 delivers 5x SATA storage bays with a 6Gb/s drive interface. The single controller has a 4-core Intel Atom processor and can be outfitted with 4GB to 16GB of DDR3 memory. It offers 4x onboard RJ45 1GbE host ports and can be outfitted with an optional host board. The supported host board options features 4x more 1GbE RJ45 ports plus 2x 12Gb/s SAS ports for connecting up to 4x expansion enclosures. For a maximum drove capacity of up to 37 drives with the addition of 4x GSe Pro 200 8-bay expansion enclosures attached. A host board is required for attaching additional storage enclosures.

INFORTREND EONSTOR GSE PRO 100 MODELS

• 5x SATA storage bays, single controller, single host board slot

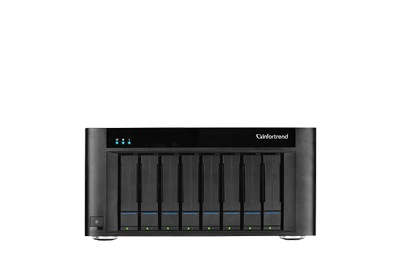

• 8x SATA storage bays, single controller, single host board slot

Supported storage protocol options include file level, block level and object level. There are several options for RAID supporting performance to resiliency. The system is powered by a single 250W 80 PLUS Bronze PSU. For management, Infortrend provides EonOne, offering an intuitive graphics user interface, which includes several pre-installed applications for small to medium-sized businesses. Highly expandable with additional enclosures, the system features a drawer design for easy upgrades with fans, controllers, host boards, and drive swaps.
