Infortrend EonStor GSe Pro 108 Storage

Designed for small to medium-sized businesses, the Infortrend EonStor GSe Pro 108 offers 8x SATA storage bays that can be scaled-up with optional expansion enclosures to support up to 40 drives. It features a single controller with a 4-core Intel Atom CPU and 4GB to 64GB of non ECC DDR3 cache memory ensuring reliable data transfers in the event of a power failure.

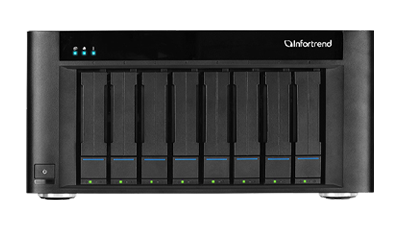

Infortrend GSe Pro 108 Storage front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

GSe Pro

105

5x SATA storage bays, single controller, single host board slot

GSe Pro

108

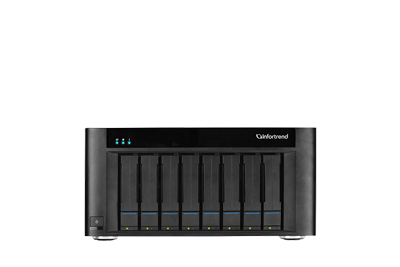

8x SATA storage bays, single controller, single host board slot

Infortrend EonStor GSe Pro 108 Storage - System Overview

Additional Information

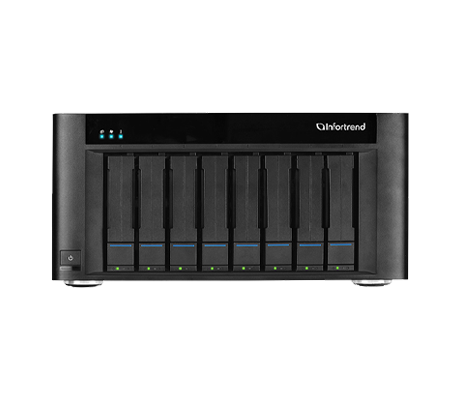

Infortrend GSe Pro 108 front view

This system can be placed on a desktop with additional expansion enclosures stacked on top. Featuring easy file sharing and management, this platform can be used for backup, synchronization, and more. It integrates SAN and NAS services with Cloud Gateway attributes for a unified storage solution. The Infortrend EonStor GSe Pro 108 features 4x RJ45 1GbE host port connections. For expansion, an optional host board can be installed offering 4x more 1GbE RJ45 host ports plus 2x 12Gb/s SAS ports to connect additional expansion enclosures. Up to 4x additional 8-bay expansion enclosures can be attached.

INFORTREND EONSTOR GSE PRO 100 MODELS

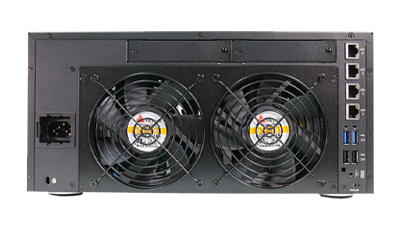

Infortrend EonStor GSe Pro 105Infortrend EonStor GSe Pro 108Infortrend EonStor GSe Pro 108 Storage rear view

The system is easy to manage via Infortrend’s EonOne software suite. It offers a graphic interface for monitoring and allocating resources and provides step-by-step instructions for setting up the system. It also comes pre-configured with a number of essential applications for small and medium-sized businesses such as; s Proxy Server, LDAP Server, Syslog Server, VPN Server, NVR Server, Docker, and more! The EonCloud Gateway provides and intelligent engine enabling the appliance wot synchronize file-level and block-level data.

Infortrend EonStor GSe Pro 108 Storage - Specifications

Processor - 1 Socket

  • Intel Atom 4 Core

Controller

  • Single

Cache Memory

  • DDR3 4GB (non-ECC), up to 16GB

Supported Drives

  • 2.5" SATA SSD
  • 3.5" 6Gb/s SATA 7,200 RPM HDD

Max. Drive Number

  • 8-bay desktop

Max. SSD Cache Pool (Block Level)

  • 0.6TB

Onboard 1GbE Ports (RJ45)

  • 4

Max. Host Board Slots

  • 1

Host Board Options

  • 1GbE (RJ-45) x 4
  • 12Gb/s SAS x 2

Chassis

    8-Bay Desktop

    Height: 168mm

    Width: 345mm

    Depth: 254mm

Power Supply

  • 250W 100-240VAC @3.5A 47-63 Hz

Management

  • Web-based EonOne management software
  • User account management
  • Group management
  • Folder management - folder access control
  • Quota management
  • Folder encryption with AES
  • Integration with Microsoft Active Directory (AD) and Linux LDAP
  • Storage Resource Management to analyze history of resource usage
  • Multi-factor authentication login mechanism
  • File-level QoS (network traffic control)

Operating Systems

  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • MacOS X
  • VMware

Infortrend EonStor GSe Pro 108 Storage - Documentation

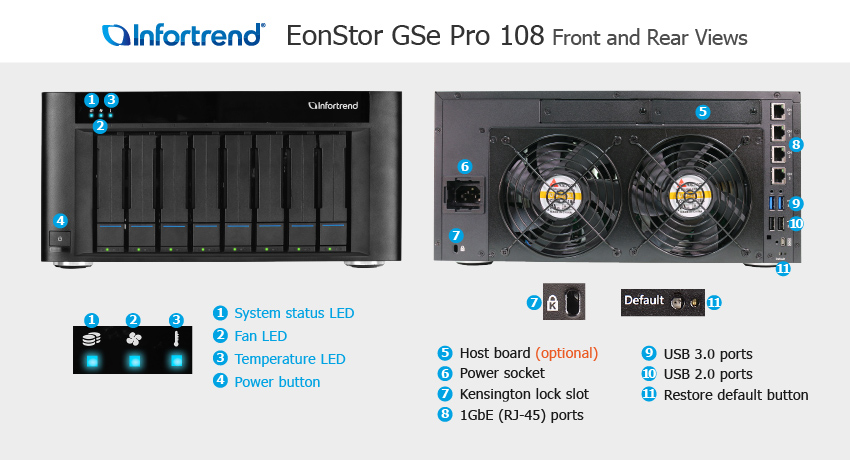

Infortrend EonStor GSe Pro 108 Storage Data Sheet Infortrend EonStor GSe Pro 108 Storage Front and Back View Infortrend EonStor GSe Pro 108 Storage Unpacking List Infortrend EonStor GSe Pro 100 Series Quick Installation Guide Infortrend EonStor GSe Pro 100 Series Hardware Manual Infortrend EonStor GS EonOne Web-Based User Interface Infortrend EonStor Command Line Interface
