Infortrend EonStor GSe Pro 205 Storage

A step up from the GSe Pro 100-series appliances, the Infortrend EonStor GSe Pro 205 offers 1x controller, plus 1GbE and 10GbE (SFP+) onboard host ports. Designed for SMBs and environments with limited space and budget, it provides cloud integration along with cross-office file sharing, and centralized management. 5x storage bays on the front of the chassis support SATA HDDs and SSDs with a 6Gb/s SATA drive interface.

Overview

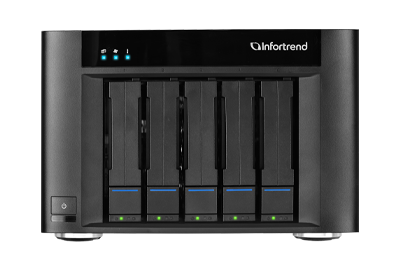

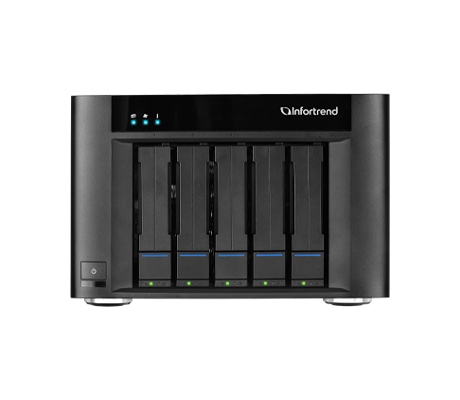

Infortrend EonStor GSe Pro 205 Storage - System Overview

Additional Information

Instead of a single host board slot like on the EonStor GSe Pro 100 series, the Infortrend EonStor GSe Pro 200-series has 2x host board slots for connecting additional host platforms and expansion enclosures. There are two versions of each platform, a standard configuration and performance configuration. Standard comes with a 2-core Pentium processor, while the performance version has a 4-core intel Pentium processor. Up to 4x 8-bay expansion enclosures can be connected to the EonStor GSe Pro 205 for 32x additional drives and 37x drives total when factoring in the storage on the controller unit.

INFORTREND EONSTOR GSE PRO 200 MODELS

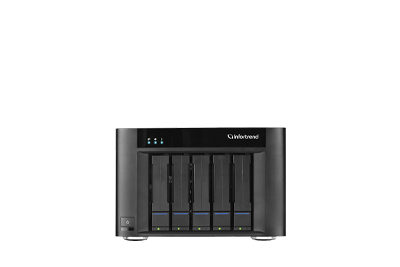

Infortrend EonStor GSe Pro 205

5x SATA storage bays, 2-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 205T

5x SATA storage bays, 4-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 208

8x SATA storage bays, 2-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 208T

8x SATA storage bays, 4-Core Intel Pentium CPU, single controller, dual host board slots

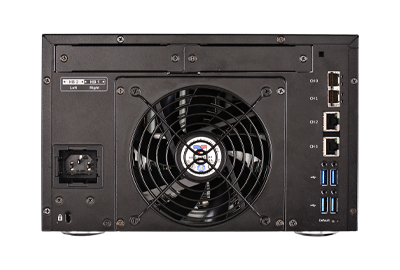

Infortrend EonStor GSe Pro 205 Storage rear view

Thanks to EonCloud, this platform supports integration with several public and private cloud providers including, Amazon S2, Microsoft Azure, Wasabi, OpenStack, and Google Cloud, to name a few. It can also be configured to support File level, Block level, or Object level storage protocols. Web-based management featuring an intuitive graphical user interface is provided by Infortrend’s EonOne software suite. EonOne also provides step-by-step configurations as well as robust management features.

Specifications

Infortrend EonStor GSe Pro 205 Storage - Specifications

Processor - 1 Socket

GSe Pro 205

Intel Pentium 2-core CPU

GSe Pro 205T

Intel Pentium 4-core CPU

Controller

Single

Cache Memory

DDR4 8GB (non-ECC), up to 32GB

Supported Drives

2.5" SATA SSD
3.5" 6Gb/s SATA 7,200 RPM HDD

Max. Drive Number

5-bay desktop

Max. SSD Cache Pool (Block Level)

Onboard 1GbE Ports (RJ45)

Max. Host Board Slots

Host Board Options

1GbE (RJ-45) x 4

Chassis

Height: 168mm

Width: 255mm

Depth: 254mm

Power Supply

250W 100-240VAC @3.5A 47-63 Hz

Management

Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
Folder encryption with AES
Integration with Microsoft Active Directory (AD) and Linux LDAP
Storage Resource Management to analyze history of resource usage
Multi-factor authentication login mechanism
File-level QoS (network traffic control)

Operating Systems

Microsoft Windows Server
Red Hat Enterprise Linux
MacOS X
VMware

Documentation

Infortrend EonStor GSe Pro 205 Storage - Documentation

Infortrend EonStor GSe Pro 205 Storage Data Sheet Infortrend EonStor GSe Pro 205 Storage Front and Back View Infortrend EonStor GSe Pro 205 Storage Unpacking List Infortrend EonStor GSe Pro 200 Series Quick Installation Guide Infortrend EonStor GSe Pro 200 Series Hardware Manual Infortrend EonStor GSe Pro EonOne Web-Based User Interface Infortrend EonStor Command Line Interface
