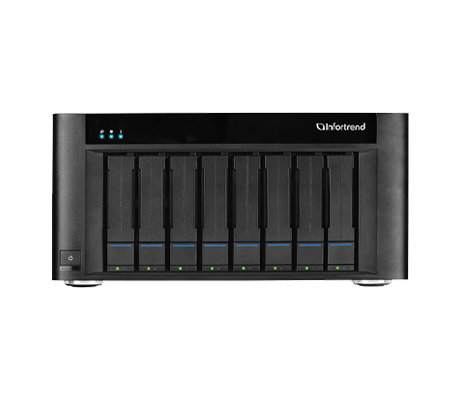

Infortrend EonStor GSe Pro 208 Storage

Featuring a single controller, the Infortrend EonStor GSe Pro 208 has two versions. One offers a 2-core Intel Pentium processor, and the other, identified by a “T” suffix is a performance version outfitted with a 4-core processor. By default, there are 8GB of non-ECC cache memory, which can be added to for up to 32GB. It offers 2x 3.5-inch storage bays on the front of the system that can be outfitted with 2.5-inch SATA SSDs or 3.5-inch 6Gb/s SATA HDDs.

Overview

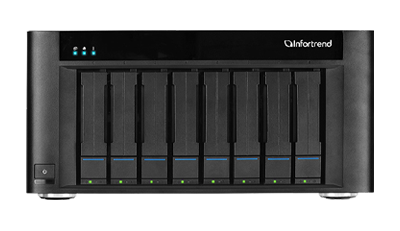

Infortrend EonStor GSe Pro 208 Storage - System Overview

Additional Information

This system can be placed on a desktop with additional expansion enclosures stacked on top. Featuring easy file sharing and management, this platform can be used for backup, synchronization, and more. It integrates SAN and NAS services with Cloud Gateway attributes for a unified storage solution. The Infortrend EonStor GSe Pro 108 features 4x RJ45 1GbE host port connections. For expansion, an optional host board can be installed offering 4x more 1GbE RJ45 host ports plus 2x 12Gb/s SAS ports to connect additional expansion enclosures. Up to 4x additional 8-bay expansion enclosures can be attached.

INFORTREND EONSTOR GSE PRO 200 MODELS

Infortrend EonStor GSe Pro 205

5x SATA storage bays, 2-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 205T

5x SATA storage bays, 4-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 208

8x SATA storage bays, 2-Core Intel Pentium CPU, single controller, dual host board slots

Infortrend EonStor GSe Pro 208T

8x SATA storage bays, 4-Core Intel Pentium CPU, single controller, dual host board slots

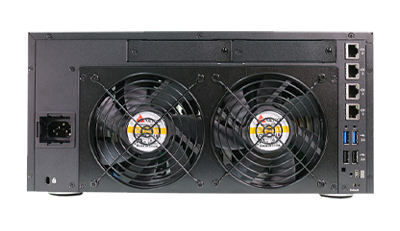

Infortrend EonStor GSe Pro 208 Storage rear view

Augmented with additional host boards in the 2x host board slots, this system can be connected to 4x more 8-bay enclosures for up to 40 drives maximum. Featuring a modular chassis, the system can be easily be upgraded with more memory, host boards, and storage. EonOne serves as a single control center for system management and offers step-by-step configuration options.

Specifications

Infortrend EonStor GSe Pro 208 Storage - Specifications

Processor - 1 Socket

GSe Pro 208

Intel Pentium 2-core CPU

GSe Pro 208T

Intel Pentium 4-core CPU

Controller

Single

Cache Memory

DDR4 8GB (non-ECC), up to 32GB

Supported Drives

2.5" SATA SSD
3.5" 6Gb/s SATA 7,200 RPM HDD

Max. Drive Number

8-bay desktop

Max. SSD Cache Pool (Block Level)

Onboard 1GbE Ports (RJ45)

Max. Host Board Slots

Host Board Options

1GbE (RJ-45) x 4

Chassis

Height: 168mm

Width: 345mm

Depth: 254mm

Power Supply

250W 100-240VAC @3.5A 47-63 Hz

Management

Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
Folder encryption with AES
Integration with Microsoft Active Directory (AD) and Linux LDAP
Storage Resource Management to analyze history of resource usage
Multi-factor authentication login mechanism
File-level QoS (network traffic control)

Operating Systems

Microsoft Windows Server
Red Hat Enterprise Linux
MacOS X
VMware

Documentation

Infortrend EonStor GSe Pro 208 Storage - Documentation

Infortrend EonStor GSe Pro 208 Storage Data Sheet Infortrend EonStor GSe Pro 208 Storage Front and Back View Infortrend EonStor GSe Pro 208 Storage Unpacking List Infortrend EonStor GSe Pro 200 Series Quick Installation Guide Infortrend EonStor GSe Pro 200 Series Hardware Manual Infortrend EonStor GS EonOne Web-Based User Interface Infortrend EonStor Command Line Interface
