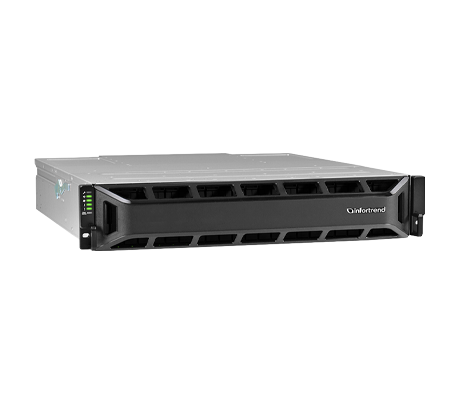

Additional InformationThe Infortrend EonStor GSx 4024UR Storage Appliance supports 2x controllers for redundancy. Each controller is outfitted with a single Intel Xeon D processor with 6x cores and a default cache memory allocation of 48GB. The cache memory can be upgraded to support up to 384GB. With scale-up, the platform can support up to 96x drives per appliance, and up to 240 drives per cluster. To allow expansion, the system will need optional host boards installed in the controllers, each of which can support 2x host boards.
Intel Xeon D 6-Core
Super capacitor + flash module
Default DDR4 48GB, up to 384GB
24x 2.5" U.2 NVMe SSDs
Front Bays:
Max Drive Number via Expansion Enclosures:
32Gb/s FC x 4
25GbE (SFP28) x 4, RDMA
100GbE (QSFP28) x 1, RDMA
100GbE (QSFP56) x 2, RDMA
JB 4024U
449 x 88 x 530 mm
530W x 2 (80 PLUS Bronze)
Disk protection: RAID 5, RAID 6
Cluster protection: Rsync
Infortrend Parallel File System
File System
Infortrend Parallel File System
Clients and Connectivity
GSx Client: Allows users and applications to connect over Ethernet or Fibre Channel to access
Supported Client OS: Linux, Windows
Client Connections: Leverages FC, iSCSI, iSER/RDMA
Max. Number of File Systems
Max. iSCSI Initiators
Max. Host Connection Number
256 (per FC)
Max. File System Size
80PB
Max. Number of User Accounts
20000
Max. Number of User Groups
512
Max. Number of Concurrent Connections
2048
