Lenovo D3284 Direct Attached Storage

The Lenovo D3284 Direct Attached Storage is a high-density system designed for data-intensive environments like high-performance computing, Tier-3 cloud deployments, and medium-to-large enterprise data centers. Housed in a 5U enclosure, the D3284 has 2x drawers that support 42x drives, each, for a total of 84x hot-swappable 3.5-inch SAS drives. Users can daisy-chain up to 4x enclosures for a total of 336x drives, with support for up to 3x server connections.

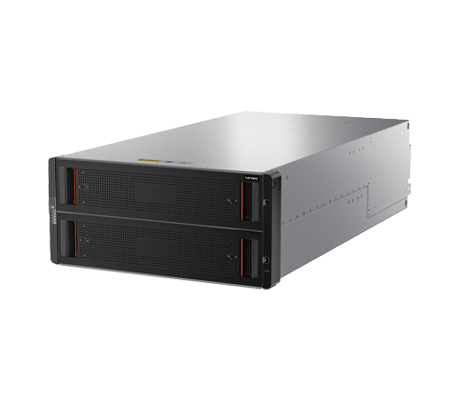

Lenovo D3284 Direct Attached Storage side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo D3284 Direct Attached Storage - System Overview

Additional Information

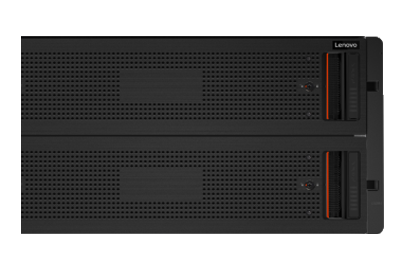

Lenovo D3284 Direct Attached Storage front

Built for flexibility, the D3284 allows administrators to mix high-capacity NL-SAS hard drives with high-IOPS, low-latency SSDs in the same unit, enabling a multitiered storage infrastructure within a single chassis. The enclosure is equipped with dual 12Gb SAS expander modules (ESMs) and 3x universal 4x 12Gb mini-SAS HD connectors, ensuring high-speed, reliable data transfer. Power is provided by dual redundant 2214W hot-swappable 80 Plus Platinum-certified power supplies, while 5x cooling fans keep the system running efficiently under heavy workloads.

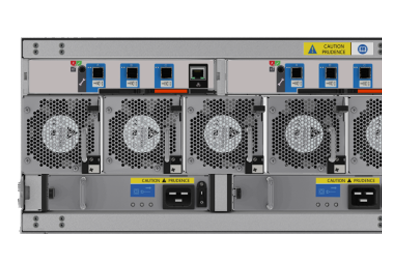

Lenovo D3284 Direct Attached Storage rear

Compatible with all Lenovo ThinkServer and System X servers, the D3284 is also a core component of the Lenovo GPFS Storage Server and Lenovo Storage DX8200N powered by NexentaStor. It uses one-third less rack space compared to traditional 2U enclosures with equivalent drive counts and fits into standard 1-meter-deep racks, making it an ideal choice for organizations looking to expand capacity.

Lenovo D3284 Direct Attached Storage - Specifications

Dual Expansion Modules

  • Dual 12Gb SAS standard, with active/active failover

Storage Options

  • 84x hot-swap SAS 3.5-inch drives:
    1. Up to 20TB 7,200rpm NL SAS HDDs
    2. Up to 7.68TB SSDs (2.5-inch drive in 3.5-inch tray)

Storage Capacity (per enclosure)

  • Up to 1,680TB – 7,200rpm NL SAS HDDs
  • Up to 645TB – SAS SSDs

Expandability (via Daisy-Chain)

  • Up to 4x D3284 enclosures per HBA

Host Controllers

  • ThinkSystem RAID 930-8e PCIe 12Gb Adapter
  • ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA
  • ThinkSystem 430-8e PCIe 12Gb SAS/SATA HBA
  • ThinkSystem 430-16e PCIe 12Gb SAS/SATA HBA

RAID Support

  • RAID-0, 1, 10, 5, 50, 6, 60 (Host controller-dependent)

Power Supplies & Fans

  • 2x 2214W (1+1) hot-swap/redundant 80 Plus Platinum power supplies
  • 5 hot-swap/redundant fans

Back Panel Connectors

    Each expansion module (x2) includes:

  • 4x ports: 3x 12Gbps Mini-SAS HD (SFF-8644) per ESM
  • 1x RJ45 Ethernet port for management

Dimensions

  • 5U Form Factor
  • Height: 219mm (9.5 in.); Width: 483mm (19 in. IEC60297 rack compliant); Depth: 933mm(36.75in.)
  • Weight: min. 64kg (141 lbs); max. 131kg (289 lbs)

Hot-Swap Components

  • HDDs, SSDs, ESMs, PSUs, fans

Lenovo D3284 Direct Attached Storage - Documentation

Lenovo D3284 Direct Attached Storage Data Sheet Lenovo D3284 Direct Attached Storage Product Guide
