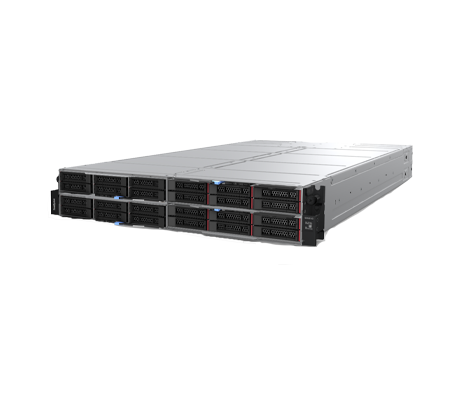

The Lenovo ThinkSystem SD535 V3 Node Server is engineered for workloads ranging from virtualization, high-performance workloads, transaction processing, and Big Data analytics. Up to 4x SD535 V3 sleds can be installed in a 2U ThinkSystem D3 chassis, enabling high-density compute performance in a compact footprint. Each 1U, half-width node is a single-socket system compatible with 4th or 5th Generation AMD EPYC processors with up to 192 cores and a maximum TDP of 500W, depending on the processor.
Lenovo ThinkSystem SD535 V3 Node Server - System Overview
Additional Information
Each CPU in the ThinkSystem SD535 V3 Node Server oversees 12x DDDR5 memory module slots supporting up to 1.5TB of memory when using 128GB 3DS RDIMMs. Both the 9005 and 9004-seroes processors support a 12-channel memory architecture, for 1x DIMM per Channel with a full complement of memory modules. Depending on the processor generation, memory speeds operate at 6400MHz with 5th Gen and 4800MHz with 4th Gen. The front panel of each SD535 V3 server includes 6x 2.5-inch hot-swap SSDs for either SAS, SATA, or NVMe PCIe 5.0 x4 configurations. Similarly, the system offers up to 4x M.2 SATA or NVMe drives to boot the operating system. Two of these M.2 drives are installed on an adapter with built-in RAID-1 support, while the other two are mounted directly on the system board.
It includes a PCIe 5.0 x16 low profile, half-length slot for high-speed network and storage adapters or a single GPU. 1x single-wide 75W GPU such as the NVIDIA L4 24GB PCIe Gen4 Passive cooling GPU can be installed. Some configurations also feature an internal (CFF) slot for a RAID adapter dedicated to internal storage. For additional connectivity, the Lenovo SD535 V3 Node server provides an OCP 3.0 slot with a PCIe 5.0 x16 interface, supporting a wide range of Ethernet network adapters. To enhance thermal efficiency, the SD535 offers Lenovo Neptune Core open-loop water cooling, which dissipates heat from the CPU using liquid cooling. The system is equipped with up to 4x 40mm simple-swap dual-rotor fans with N+1 rotor-redundancy. Only 3x fans are required when water cooling is in use.
For mobile management, the XClarity Mobile app includes a tethering function that allows users to connect an Android or iOS device via USB to monitor the system’s status in real time. In addition, a MicroSD card slot is available for the XClarity Controller (XCC), enabling Remote Disk on Card (RDOC) or for storing firmware updates to simplify maintenance and recovery.
Lenovo ThinkSystem SD535 V3 Node Server - Specifications
Processors - 1 Socket (Per Node)
1x 4th Gen Intel Xeon Scalable processor
1x 5th Gen Intel Xeon Scalable processor
4th Gen: TDP up to 400W/128 cores
5th Gen: TDP up to 500W/192 cores
Memory (Per Node)
12x DDR5 DIMM slots
12 channels per CPU
Supports up to 1.5TB of system memory using 12x 128GB 3DS RDIMMs
TruDDR5 RDIMMs and 3DS RDIMMs are supported, up to 6400 MHz
Drive Bays (Per Node)
6x 2.5” SAS/SATA/NVMe SSDs
2x M.2 NVMe/SATA on board drives
Internal Drive Options
2.5-inch hot-swap drives:
2.5-inch hot-swap 24 Gb SAS SSDs
2.5-inch hot-swap 6 Gb SATA SSDs
2.5-inch hot-swap PCIe 5.0 NVMe SSDs
2.5-inch hot-swap PCIe 4.0 NVMe SSDs
M.2 drives:
M.2 SATA drives
M.2 PCIe 4.0 NVMe drives
Power Supplies
Chassis supports up to 3x power supply units, up to 2700W each
Cooling
Air cooling or optional Lenovo Neptune direct water cooling
Expansion Slots (Per Node)
1x PCIe Gen5 x16 HHHL slot
1x OCP 3.0 slot
GPU Support (Per Node)
1x 75W GPU
Dimensions
Width: 448 mm (17.64 inches)
Height: 87 mm (3.43 inches)
Depth: 898 mm (35.36 inches)
Weight: Empty (without servers and power supplies): 11.8 kg (26.1 lb)
Weight: Maximum (4x 1U servers and 3x power supplies): 42.4 kg (93.4 lbs)
Network Interface
1x 1GbE dedicated management port
Management
Lenovo XClarity Controller (XCC)
OS Support
Microsoft Windows Server
Red Hat
SUSE
VMware
Linux
Lenovo ThinkSystem SD535 V3 Node Server - Documentation
