Lenovo ThinkSystem SD650-I V3 Neptune DWC Server - System Overview

In addition to storage, this machine also supports dual x16 PCIe Gen5 LP slots per tray. Incorporating GPUs brings unprecedented versatility by accelerating a full range of precision. With roughly 128 Xe-HPC cores per GPU, each support up to 128 ray tracing units, 52 teraflops Peak FP64 throughput, and a TDP of up to 600W per GPU. Featuring Lenovo’s Neptune Direct Water Cooling (DWC) technology, the Lenovo SD650-I V3 supports workloads from technical computing, grid deployments, analytics, and is ideally suited for fields such as research, life sciences, energy, simulation, and engineering. The Neptune DWC server can remove up to 95% of internal heat at lower temperatures and supports water intake up to 45°C. The chassis features a dripless water input and outlet on the rear of the chassis ensuring nodes can be quickly removed from the machine without disturbing the entire system. Users can save up to 40% on energy costs compared to non-optimized air-cooled systems that require constant fan operation.

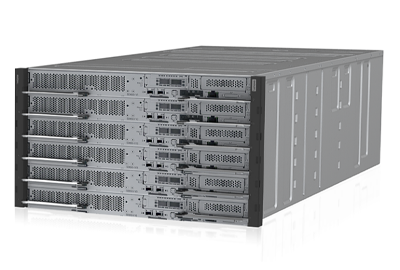

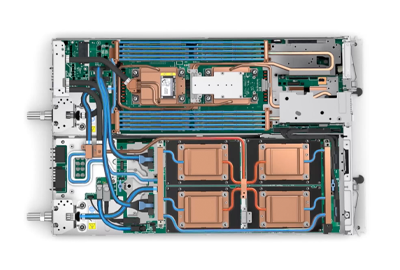

Lenovo ThinkSystem SD650-I V3 Neptune DWC Server Enclosure Lenovo ThinkSystem SD650-I V3 Neptune DWC Server DWC

Lenovo ThinkSystem SD650-I V3 Neptune DWC Server - Specifications

Processors - 2 Socket (Per Tray)

  • 2x 4th generation Intel Xeon Scalable CPUs per tray OR 2x Intel® Xeon® CPU Max Series processors with HBM per tray
  • TDP up to 250W
  • Up to 32 cores

Memory

  • 16x TruDDR5 DIMM slots
  • Maximum 2TB using 128GB DIMMs
  • DIMM speeds up to 4800 MHz

Drive Bays

  • Up to 4x 7mm or 2x 15mm U.2/SATA, no drive/backplane choice
  • 1 x liquid cooled M.2 NVMe SSD, providing both the boot drive and storage function
  • *SW RAID and Intel VROC for Intel drives only

Power Supplies

  • Up to 9x air CFF v4 (2400W PT, 2600W TT) /Up to 3x Direct Water Cooled Power Supply (7200W) 80+ Titanium

Cooling

  • Direct Water Cooling at the heat source with up to 45°C inlet water temperature

Ports

  • External diagnostics port, console connector
  • 1x USB 3.1 (5Gb/s) port
  • 1x DB9 serial port for local connectivity

Expansion Slots

    Each Tray:
  • 2x x16 PCIe Gen5 LP

GPUs

  • Four Intel Data Center GPU Max =600W TDP

Dimensions

    Height: 41mm (1.6")
    Width: 438mm (17.2")
    Depth: 693mm (27.3")
    Maximum Weight: 20.5 kg (45.2 lb) maximum

Management

  • XClarity support
  • ASPEED 2600

Lenovo ThinkSystem SD650-I V3 Neptune DWC Server - Documentation
