Lenovo ThinkSystem SR250 V3 Server

The Lenovo ThinkSystem SR250 V3 server has been optimized for small-to-medium-sized businesses, retail stores, or distributed enterprises. It supports a single Intel Xeon E-2400 series processor with up to 8 cores and a 95W TDP, or an Intel Pentium G7400/G7400T with 2 cores and a TDP of 46W. The 1U system is a short-depth chassis that can house 1x NVIDIA T1000 8GB PCIe Active GPU or NVIDIA T400 4GB PCIe Active GPU. In addition, the system supports up to 128GB of memory when all 4x slots are filled with 32GB UDIMM memory modules. Both Intel Xeon and Intel Pentium CPUs generate memory speeds up to 4800MHz.

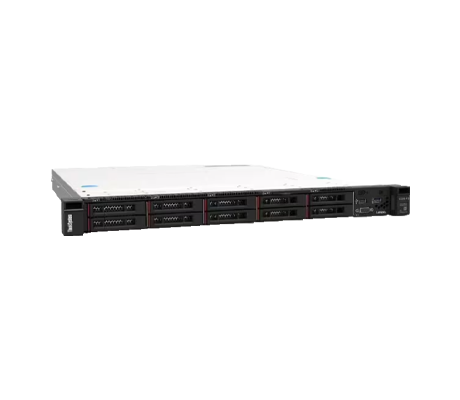

Lenovo ThinkSystem SR250 V3 side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem SR250 V3 Server - System Overview

Additional Information

Lenovo SR250 V3 front

The back of the chassis features 1x fixed 300W power supply or 2x hot-swap 450W redundant power supplies. The front panel's USB 2.0 port allows for the deployment of XClarity, a management software app, which assists with local managing, monitoring, and alerting features. On the rear, there are 2x integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on the Broadcom BCM5720 embedded controller. One can be shared with the Lenovo XClarity Controller (XCC) for remote system management. XClarity uses the Intelligent Platform Management Interface (IPMI 2.0) or the Simple Network Management Protocol (SNMP3), among others.

Lenovo ThinkSystem SR250 V3 models

Under the hood, the server supports 2x M.2 SATA drives installed in an M.2 PCIe adapter to boot the OS with VROC RAID redundancy. The front of the ThinkSystem SR250 V3 server delivers various drive bay configurations including:

  • 10x 2.5-inch hot-swap SAS/SATA drive bays
  • 8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
  • 4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays
  • 4x 3.5-inch simple-swap drive bays, all SATA
  • 4x 3.5-inch simple-swap drive bays, 2x SATA and 2x NVMe

Lenovo ThinkSystem SR250 V3 Server - Specifications

Processors - Single Socket

  • 1x Intel Xeon E-2400 CPU
  • TDP up to 95W
  • Up to 8 cores

Memory

  • 4 x DDR4 TruDDR5 ECC UDIMM slots
  • Memory Speed: 4400MHz

    • Maximum memory configuration

  • Up to 128GB

Drive Bays

  • 4x 3.5″ simple/hot-swap SATA
  • 2x 3.5″ simple-swap SATA + 2x 3.5″ simple-swap NVMe (Gen4)
  • 8x 2.5″ hot-swap SAS/SATA SSDs
  • 10x 2.5″ hot-swap SAS/SATA SSDs
  • 1 x Internal USB Port (Type A)
  • Optional 2x M.2 kit (SATA, installs in a PCIe slot)

Power Supplies

  • Support fixed PSU 300W; Dual Redundant CRPS Titanium PSU (ErP lot 9)

Fans

  • 4x system fans

Front Panel

  • Pull-out information tag
  • USB 2.0 (also supports XClarity Mobile for local management)
  • Front operator panel
  • USB 3.2 G1 (5 Gbps)
  • Optional VGA port
  • Up to 10x 2.5-inch or 4x 3.5-inch drive bays

Ports

  • Front: 1x USB 2.0, support XCC mobile; 1x USB 3.2 Gen1 (5Gb), Optional front VGA port
  • Rear: 2x USB 3.2 Gen1 ports (5Gb); 1x Serial port; 1x VGA port

Expansion Slots

  • 1x PCIe Gen5 x16 slot or 2x PCIe Gen4 x8 slots
  • 1x PCIe Gen4 x8 connector to support internal (CFF) RAID or 2x simple-swap NVMe SSDs

GPU Support

  • Optional NVIDIA Quadro T1000
  • NVIDIA Quadro T400 GPU

RAID Support

  • Supports HW RAID adapter or HBA

Network Interface

  • 2x 1GbE Embedded LOM
  • 1x 1GbE Dedicated Management

Management

  • Lenovo XClarity Controller
  • Embedded TPM 2.0
  • Root of Trust module with integrated Platform Firmware Resiliency

OS Support

  • Microsoft Windows Server
  • Red Hat
  • SUSE
  • VMware ESXi
