The Lenovo ThinkSystem SR250 V3 server has been optimized for small-to-medium-sized businesses, retail stores, or distributed enterprises. It supports a single Intel Xeon E-2400 series processor with up to 8 cores and a 95W TDP, or an Intel Pentium G7400/G7400T with 2 cores and a TDP of 46W. The 1U system is a short-depth chassis that can house 1x NVIDIA T1000 8GB PCIe Active GPU or NVIDIA T400 4GB PCIe Active GPU. In addition, the system supports up to 128GB of memory when all 4x slots are filled with 32GB UDIMM memory modules. Both Intel Xeon and Intel Pentium CPUs generate memory speeds up to 4800MHz.
Lenovo ThinkSystem SR250 V3 Server - System Overview
Additional Information
The back of the chassis features 1x fixed 300W power supply or 2x hot-swap 450W redundant power supplies. The front panel's USB 2.0 port allows for the deployment of XClarity, a management software app, which assists with local managing, monitoring, and alerting features. On the rear, there are 2x integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on the Broadcom BCM5720 embedded controller. One can be shared with the Lenovo XClarity Controller (XCC) for remote system management. XClarity uses the Intelligent Platform Management Interface (IPMI 2.0) or the Simple Network Management Protocol (SNMP3), among others.
Under the hood, the server supports 2x M.2 SATA drives installed in an M.2 PCIe adapter to boot the OS with VROC RAID redundancy. The front of the ThinkSystem SR250 V3 server delivers various drive bay configurations including:
10x 2.5-inch hot-swap SAS/SATA drive bays
8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays
4x 3.5-inch simple-swap drive bays, all SATA
4x 3.5-inch simple-swap drive bays, 2x SATA and 2x NVMe
Lenovo ThinkSystem SR250 V3 Server - Specifications
Processors - Single Socket
1x Intel Xeon E-2400 CPU
TDP up to 95W
Up to 8 cores
Memory
4 x DDR4 TruDDR5 ECC UDIMM slots
Memory Speed: 4400MHz
Maximum memory configuration
Up to 128GB
Drive Bays
4x 3.5″ simple/hot-swap SATA
2x 3.5″ simple-swap SATA + 2x 3.5″ simple-swap NVMe (Gen4)
8x 2.5″ hot-swap SAS/SATA SSDs
10x 2.5″ hot-swap SAS/SATA SSDs
1 x Internal USB Port (Type A)
Optional 2x M.2 kit (SATA, installs in a PCIe slot)
Power Supplies
Support fixed PSU 300W; Dual Redundant CRPS Titanium PSU (ErP lot 9)
Fans
4x system fans

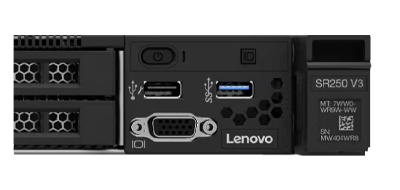

Front Panel
Pull-out information tag
USB 2.0 (also supports XClarity Mobile for local management)
Front operator panel
USB 3.2 G1 (5 Gbps)
Optional VGA port
Up to 10x 2.5-inch or 4x 3.5-inch drive bays
Ports
Front: 1x USB 2.0, support XCC mobile; 1x USB 3.2 Gen1 (5Gb), Optional front VGA port
Rear: 2x USB 3.2 Gen1 ports (5Gb); 1x Serial port; 1x VGA port
Expansion Slots
1x PCIe Gen5 x16 slot or 2x PCIe Gen4 x8 slots
1x PCIe Gen4 x8 connector to support internal (CFF) RAID or 2x simple-swap NVMe SSDs
GPU Support
Optional NVIDIA Quadro T1000
NVIDIA Quadro T400 GPU
RAID Support
Supports HW RAID adapter or HBA
Network Interface
2x 1GbE Embedded LOM
1x 1GbE Dedicated Management
Management
Lenovo XClarity Controller
Embedded TPM 2.0
Root of Trust module with integrated Platform Firmware Resiliency
OS Support
Microsoft Windows Server
Red Hat
SUSE
VMware ESXi
Lenovo ThinkSystem SR250 V3 Server - Documentation
