Lenovo ThinkSystem SR630 V3 Server

Featuring 2x 4th Generation Intel Xeon Scalable, the Lenovo ThinkSystem SR630 V3 Server is a 1U rackmountable system. Each CPU socket supports 16x DDR5 DIMM slots for a total of 32x DIMM slots on the system board. Fully configured, the maximum memory capacity on this system is 8TB. There are several storage options on the Lenovo SR630 V3 server for SAS, SATA and NVMe including 4x 3.5-inch or 12x 2.5-inch drive bays or 16x EDSFF E1.S drive slots through direct NVMe.

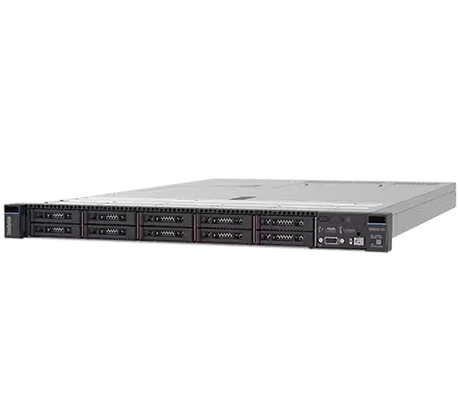

Lenovo SR630 V3 side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem SR630 V3 Server - System Overview

Lenovo ThinkSystem SR630 V3 front detail Lenovo ThinkSystem SR630 V3 detail top

Additional Features

The Lenovo ThinkSystem SR630 V3 is idea for both small and large businesses that require reliability, top-tier management capabilities and security. The Lenovo SR630 V3 can be expanded via 5x PCIe 4.0/5.0 slots as well as a single OCP 3.0 slot. 2x additional drive bays in back support SATA or NVMe drive types and support RAID and can be used to boot the system. There are also 2x internal SATA or NVMe drives slots that can be used to boot the system. Drive support is via Direct NVMe, virtual RAID on CPU (VROC), the onboard SATA controller offering RAID of 0, 1, 5 or 10. An internal, cabled HBA RAID adapter has a dedicated slot on the system board, preserving the PCIe slots. It is powered by dual 750W, 1100W, or 1800W power supplies in a redundant configuration.

Lenovo ThinkSystem SR630 V3 Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor

    • Socket:

  • 2 x LGA-4677

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 8TB: 32x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Front:

  • 4 x 3.5" drive bays
  • 12 x 2.5" drive bays
  • 16 x EDSFF E1.S drive bays

    • Rear:

  • 2 x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID

    • Internal:

  • 2 x M.2 SATA/NVMe boot drives, support RAID

Expansion Slots

  • 5 x PCIe 4.0/5.0 slots
  • 1 x OCP 3.0 slot
  • 1 x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot

GPU Support

  • 3 x 75W GPUs for graphics-intensive workloads

Ports

    Front:

  • 1 x USB 3.1 G1
  • 1 x USB 2.0 for BMC
  • 1 x VGA (optional)
  • 1 x external diagnostics handset port (optional)

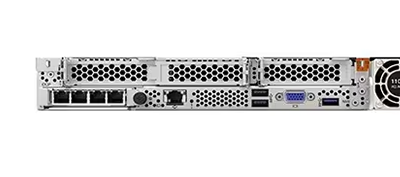

    • Rear:

  • 3 x USB 3.1 G1
  • 1 x VGA
  • 1 x 1GbE RJ-45 (management)
  • 2nd 1GbE management port (optional in OCP slot location)
  • 1 x Serial port (optional)

HBA / RAID Support

  • SATA with SW RAID (0, 1, 5, 10)

System Management

  • Lenovo XCLarity Controller

Power

  • Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.3" (440mm)

    Depth: 30.4" (773mm)

    Maximum Weight: 44.5 lbs (20.2kg)

Lenovo ThinkSystem SR630 V3 Server - Documentation

Lenovo ThinkSystem SR630 V3 Server Data Sheet Lenovo ThinkSystem SR630 V3 Server Product Guide Lenovo ThinkSystem SR630 V3 Server User Guide
