Lenovo ThinkSystem SR645 V3 Server

Supporting dual 4th generation AMD EPYC processors, the 1U Lenovo ThinkSystem SR645 V3 server is suitable for small businesses to large enterprises, and cloud service providers. AMD processors with a maximum TDP of 360W are supported, including those with up to 96 Zen 4 cores, each. The dense, high-performance server features 24x DDR5 memory module slots offering up to 6TB of memory when all slots are populated with 256GB 3DS RDIMMs offering speeds of up to 4800MHz. For significant processing power in a 1U chassis, the system supports up to 3x single-width GPUs with a maximum power of 75W each.

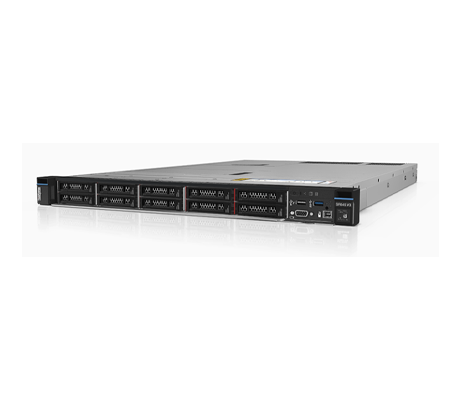

Lenovo ThinkSystem SR645 V3 side view
Lenovo Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Lenovo ThinkSystem SR645 V3 Server - System Overview

The ThinkSystem SR645 V3 server offers a wide range of drive and slot configurations plus high-performance features essential to certain business sectors including, banking, healthcare, and telco. There are up to 3x PCIe slots, with 2x PCIe 5.0 and a single PCIe 4.0 slot, all with rear-access. A dedicated slot for an OCP 3.0 adapter is present but slot availability depends on the riser and rear drive bay selections. Up to 4x 3.5” hybrid drives, 12x 2.5” hybrid drives, or 16x EDSFF drives can be configured on this system but should be ordered at time of purchase. It provides onboard NVMe PCIe ports that enable direct connections to 12x NVMe SSDs, freeing up PCIe slots and reducing the price of purchasing NVMe support devices. The system also features an internal M.2 module supporting 2x M.2 drives for more storage or to boot the operating system. XClarity, Lenovo’s simple interface software makes management straightforward, allowing administrators to monitor hardware and make specific changes when needed.

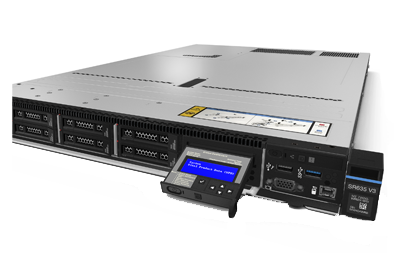

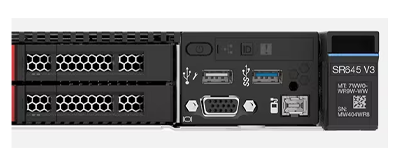

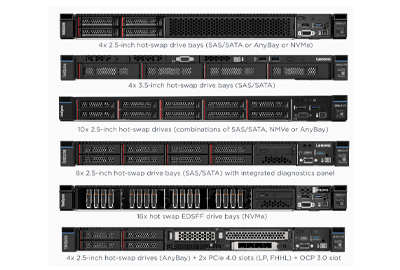

Lenovo ThinkSystem SR645 V3 Server front panel Lenovo ThinkSystem SR645 V3 Server LCD screen Lenovo ThinkSystem SR645 V3 Server front configurations

Lenovo ThinkSystem SR645 V3 Server - Specifications

Processors - Dual Socket

  • Up to 2x 4th generation AMD EPYC CPUs
  • TDP up to 360W
  • Up to 96 cores

Memory

  • 24 x TruDDR5 DIMM slots
  • Maximum 6TB with support for 3DS RDIMMs
  • Up to 1 DPC at 4800MHz

Drive Bays

  • Up to 4x 3.5”, 12x 2.5” drives, or 16x EDSFF drives

Power Supplies

  • Dual Redundant AC & DC Supplies with Titanium/Platinum for ErP Lot9 Compliance

Fans

  • Up to 8x N+1 redundant hot swap 40 mm fans
  • Closed-loop liquid-cooled heatsink design

Ports

    Front:

  • 1x USB 3.1 G1, 1x USB 2.0 with XCC connection for mobile device
  • 1x VGA (optional)
  • Optional external Diagnostic Port

    • Rear:

  • 3x USB 3.1 G1
  • 1x VGA port
  • 1x Serial port (optional)
  • System ID LED, Error LED, NMI button

Expansion Slots

  • Up to 1x PCIe 4.0, 2x PCIe 5.0 slots
  • 1x OCP 3.0 adapter slot

GPUs

  • Up to 3x single-width GPUs

Dimensions

    Height: 43mm (1.7")
    Width: 440mm (17.3")
    Depth: 773mm (30.4")
    Maximum Weight: 20.2 kg (44.6 lb)

Management

  • Lenovo XClarity Controller

Lenovo ThinkSystem SR645 V3 Server - Documentation

Lenovo ThinkSystem SR645 V3 Data Sheet Lenovo ThinkSystem SR645 V3 Product Guide Lenovo ThinkSystem SR645 V3 User Guide Lenovo ThinkSystem SR645 V3 Hardware Maintenance Guide Lenovo ThinkSystem SR645 V3 System Configuration Guide
