The Lenovo ThinkSystem SR650 V3 Server is a 2U rackmountable system which houses up to 2x 4th Generation Intel Xeon Scalable processors. Each CPU socket supports 16x DDR5 DIMM slots for a total of 32x slots across the system board. The maximum memory capacity is 8TB when 256GB 3DS RDIMM modules are installed in all slots. This system can hold up to 20x 3.5-inch drive bays or 40x 2.5-inch using front, middle, and rear drive bays. The Lenovo SR650 V3 Server offers expanded capabilities via 12x PCIe 4.0/5.0 slots on the rear of the system.

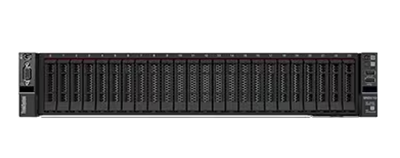

Lenovo ThinkSystem SR650 V3 Server - System Overview
Additional Features
Featuring 2x 4th Generation Intel Xeon Scalable Processors, the Lenovo ThinkSystem SR650 V3 is a 2U rackmountable system ideal for small businesses or large enterprise applications. With a single DIMM per memory channel memory will operate at a top speed of up to 4800MT/s or 4400MT/s with 2x DIMMS per memory channel. Up to 8x single-width or 3x double wide GPUs can be installed to augment processing power. Offering improvement to I/O performance latency and throughput, it will support up to 20 NVMe drives without oversubscription of PCIe lanes offering a 1:1 connectivity. M.2 Adapters are supported to boot the system with RAID provided by virtual RAID on CPU (VROC). This system features Lenovo’s XClarity system manager for enhanced management features and ThinkShield security. It is powered by dual 750W, 1100W, 1800W, 2400W, or 2600W power supplies in a redundant configuration.
Lenovo ThinkSystem SR650 V3 Server - Specifications
Processor - 2 Sockets
4th Generation Intel Xeon Scalable Processor
Socket:
2 x LGA-4677
Memory
Memory Slots:
32 x DDR5 DIMM slots
Memory Capacity:
Up to 8TB: 32x 256GB DRAM
Memory Speed:
Up to 4800MHz
Drive Bays
Drive Bays:
20 x 3.5" drive bays
40 x 2.5" drive bays
Rear:
2 x 2.5"; 7mm SATA/NVMe hot-swap boot drives, support RAID
Internal:
2 x M.2 SATA/NVMe boot drives, support RAID
Expansion Slots
12 x PCIe 4.0/5.0 slots
1 x OCP 3.0 slot
1 x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPU Support
8 x single-width GPUs
3 x double-width GPUs
Ports
Front:
1 x USB 3.1 G1
1 x USB 2.0 with XClarity Mobile support
1 x VGA (optional)
1 x external diagnostics handset port (optional)

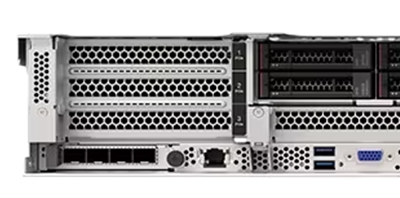

Rear:
3 x USB 3.1 G1
1 x VGA
1 x 1GbE RJ-45 (management)
2nd 1GbE management port (optional in OCP slot location)
1 x Serial port (optional)
HBA / RAID Support
SATA with SW RAID (0,1,5,10)
System Management
Lenovo XCLarity Controller
Power
Dual Redundant AC & DC (multiple wattages); Platinum & Titanium; 750W PT/TT, 1100W PT/TT, 1800W PT/TT, 2400W PT, 2600W TT and 1100W -48V DC PT
Chassis
Enclosure:
Height: 3.4" (87mm)
Width: 17.5" (445mm)
Depth: 30.1" (766mm)
Net Weight: 85.5 lbs (38.8 kg)
