Lenovo ThinkSystem SR650i V4 Server

Delivering scalable AI inferencing and enterprise performance in a 2U form factor, the Lenovo ThinkSystem SR650i V4 Server is powered by dual Intel Xeon 6 processors. This system specifically supports Intel Xeon 6530P processors, each with 32 cores and a maximum TDP of 225W. It accommodates 2x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs for applications such as predictive analytics, computer vision, and natural language processing.

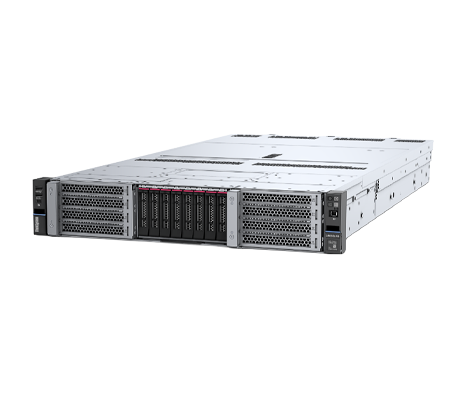

Lenovo ThinkSystem SR650i V4 side view
Intel Partner Gold NVIDIA Elite Partner Lenovo Partner Gold

Lenovo ThinkSystem SR650i V4 Server - System Overview

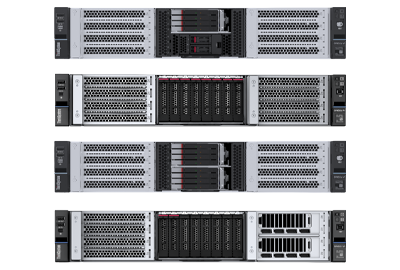

Lenovo ThinkSystem SR650i V4 ModelsAdditional Information

On the front of the chassis, the Lenovo SR650i V4 Server holds 8x 2.5-inch NVMe hot-swap drive bays, meanwhile there are 2x M.2 SATA SSDs with RAID-1 under the hood. This machine delivers up to 512GB of memory when all 8x slots are populated with 64GB DDR5 6400MHz RDIMMs.

Featuring a front I/O configuration, the ThinkSystem SR650i V4 offers up to 6x PCIe Gen5 slots, plus 2x OCP 3.0 slots with a Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter. On the rear of the platform, there are 2x 2700W 230V Titanium Hot-Swap Power Supplies. The system includes high performance fans, but users have the option to install Lenovo Neptune cooling, which improves thermal efficiency for continuous inferencing workloads. To manage the SR650i V4, administrators can deploy the Lenovo XClarity Controller (XCC) Premier. This enables remote control and includes advanced features like remote KVM, virtual media mounting, power capping, security enhancements (two-factor authentication), and boot/crash video capture.

Lenovo ThinkSystem SR650i V4 Server - Specifications

Processor

  • 2x Intel Xeon 6530P Processors

  • 32 cores each

  • 225W TDP

Memory

  • 512GB (8x 64GB TruDDR5 6400MHz RDIMMs)

Storage

Drive Bays:

  • 8x 2.5-inch NVMe hot-swap drive bays

Drives:

  • 2x 3.84TB 2.5-inch NVMe SSDs
  • 2x 960GB M.2 SATA SSDs with RAID-1

GPU

  • 2x NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs

Expansion Slots

  • Up to 6x PCIe Gen5 slots
  • 2x OCP 3.0 slots

Networking

  • Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter

Power Supply

  • 2x 2700W 230V Titanium Hot-Swap Power Supplies

Cooling

  • High-performance fans
  • Optional Lenovo Neptune water cooling

Management

  • Lenovo XClarity Controller Premier

OS Support

  • Microsoft
  • SUSE
  • Red Hat
  • VMware

Lenovo ThinkSystem SR650i V4 Server - Documentation

Lenovo ThinkSystem SR650i V4 Server Data Sheet Lenovo ThinkSystem SR650i V4 Server Product Guide
