Lenovo ThinkSystem SR655 V3 Server

The 2U Lenovo ThinkSystem SR655 V3 server features up to 40x 2.5-inch hybrid hot-swap drive bays by using combinations of 24 front-accessible bays, 8 mid bays, and 8 rear-accessible drive bays. Another configurations provides 20x 3.5-inch hybrid drive bays for lower-cost, high-capacity HDD storage. 2x rear-mounted externally accessible 7mm hot-swap drive bays can be used to support the operating system boot functions or for data storage. An internal M.2 module supports optionhal RAID 1 with 2x M.2 drives installed. The single-socket system supports an AMD EPYC processor from the 4th generation family with a TDP of up to 360W and up to 96 cores.

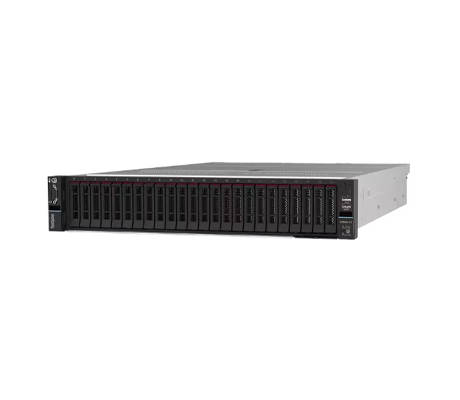

Lenovo ThinkSystem SR655 V3 side view
Lenovo Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Lenovo ThinkSystem SR655 V3 Server - System Overview

With 31 distinct drive bay combinations in the front, center, and back of the server, as well as 6 different slot configurations in the rear, the Lenovo ThinkSystem SR655 V3 server is a configuration-rich product. A variety of GPU options can be installed on the ThinkSystem SR655 V3 server. Up to 3x double-width 350W GPUs, 6x single-width 150W GPUs, or 8x single-width 75W GPUs can be mounted on the system. The server supports up to 10x PCIe slots with rear access, plus a slot dedicated to the OCP adapter slot. Flexible options for PCIe 5.0 or 4.0 are compatible depending on the riser and rear drive bay selection. When 128GB 3DS RDIMMs are mounted 12x DDR5 memory module slots can accommodate up to 1.5TB of RAM and up to 4800MHz speeds. Security is provided by Lenovo ThinkShield, and management is made simple with XClarity's user-friendly software and single activity dashboard. Additionally, it features safety precautions like hardware monitoring for unpredictable modifications and upgrades.

Lenovo ThinkSystem SR655 V3 Server LCD Screen Lenovo ThinkSystem SR655 V3 Server external diagnostics Lenovo ThinkSystem SR655 V3 Server front configurations

Lenovo ThinkSystem SR655 V3 Server - Specifications

Processors - One Socket

  • 1x 4th generation AMD EPYC CPUs
  • TDP up to 360W
  • Up to 96 cores

Memory

  • 12 x TruDDR5 DIMM slots
  • Maximum 1.5TB using 3DS RDIMMs
  • DIMM speeds up to 4800 MHz

Drive Bays

  • Up to 20x 3.5” or 40x 2.5” drives; hot-swap drive bay
  • Combinations of SAS/SATA, NVMe, or AnyBay

Power Supplies

  • Dual redundant PSUs Titanium/Platinum to meet ErP Lot 9 standard

Fans

  • Up to 6x N+1 redundant hot swap 60 mm fans

Ports

    Front:

  • 1x USB 3.0, 1x USB 2.0
  • 1x VGA (optional)

    • Rear:

  • 3x USB 3.1 G1
  • 1x VGA port
  • 1x Serial port
  • 1x Ethernet management

Expansion Slots

  • Up to 10x standard PCIe rear slots, up to 2 standard PCIe slots for front
  • 1x OCP 3.0 adapter slot
  • Support for PCIe Gen4/Gen5 and CXL

GPUs

  • Up to 3x double width 350W GPU
  • Up to 6x single width 150W GPU
  • Up to 8x single width 75W GPU

Dimensions

    Height: 87mm (3.4")
    Width: 445mm (17.5")
    Depth: 766mm (30.1")
    Maximum Weight: 38.8 kg (85.5 lb)

Management

  • XClarity support
  • ASPEED 2600

Lenovo ThinkSystem SR655 V3 Server - Documentation

Lenovo ThinkSystem SR655 V3 Data Sheet Lenovo ThinkSystem SR655 V3 Product Guide Lenovo ThinkSystem SR655 V3 User Guide Lenovo ThinkSystem SR655 V3 Hardware Maintenance Guide Lenovo ThinkSystem SR655 V3 System Configuration Guide
