Lenovo ThinkSystem SR850 V3 Server

Up to 24x 2.5-inch drives can be installed on this server as well as 2x 7mm or NVMe drives for fast access storage or OS installation. The Lenovo ThinkSystem SR850 V3 Server is housed in a 2U chassis with support for 2x or 4x 4th Generation Intel Xeon Scalable processors. Each socket supports 16x DDR5 DIMM slots. When fully configured with 4x CPUs, the maximum memory capacity on this system is up to 16TB. Expanding the capabilities of the Lenovo SR850 V3 server is achieved with up to 12x PCIe expansion slots found on the rear of the system.

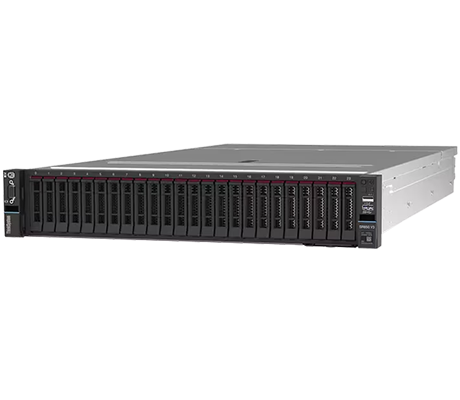

Lenovo SR850 V3 side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem SR850 V3 Server - System Overview

Lenovo ThinkSystem SR850 V3 front detail Lenovo ThinkSystem SR850 V3 detail top

Additional Features

2x or 4x 4th Generation Intel Xeon Scalable CPUs can be installed on the Lenovo ThinkSystem SR850 V3 and offer improved inter-CPU communications with 3x ultra path interconnect connections between adjacent processors. For additional processing power, the system can also be outfitted with two high-performance DW GPUs or up to 4x SW GPUs. M.2 Adapters are available to support the OS with RAID functionality provided by virtual RAID on CPU (VROC). This densely designed system is ideal for general business applications, in-memory database, and virtualization. It is powered by 2x Platinum or Titanium level power supplies in a redundant configuration.

Lenovo ThinkSystem SR850 V3 Server - Specifications

Processor - 2 or 4 Sockets

  • 4th Generation Intel Xeon Scalable Processor

    • Socket:

  • 2 or 4 x LGA-4677

Memory

    Memory Slots:

  • 64 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 16TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Drive Bays:

  • 24 x 2.5" drive bays

    • Internal:

  • 2 x 7mm or 2x M.2 drives for boot

Expansion Slots

    PCIe Slots:

  • 12 x (8x Gen5 + 4x Gen4)
  • 7 x (6x Gen5 + 1x Gen4)
  • 12 x Gen4
  • 9 x Gen4 expansion slots

GPU Support

  • 2 x double-width 350W GPUs
  • 4 x single-width 75W GPUs

Ports

    Front:

  • VGA
  • 1 x USB 3.1
  • 1 x USB 2.0

    • Rear:

  • 1 x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot

HBA / RAID Support

  • Support for ThinkSystem PCIe RAID/HBA cards

System Management

  • Lenovo XClarity Controller
  • Redfish support

Power

  • 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported

Chassis

    Enclosure:

    Height: 3.4" (87mm)

    Width: 17.6" (447mm)

    Depth: 35.5" (902mm)

    Maximum Weight: 44.5 lbs (20.2kg)

Lenovo ThinkSystem SR850 V3 Server - Documentation

Lenovo ThinkSystem SR850 V3 Server Data Sheet Lenovo ThinkSystem SR850 V3 Server Product Guide Lenovo ThinkSystem SR850 V3 Server Setup Guide Lenovo ThinkSystem SR850 V3 Server User Guide
