Lenovo ThinkSystem SR860 V3 Server

Housed in a 4U rackmountable chassis, the Lenovo ThinkSystem SR860 V3 Server supports 2x or 4x 4th Generation Intel Xeon Scalable processors. There are a total of 64x DDR5 DIMM slots on this system, which fully configured have a maximum memory capacity of 16TB. On the front of the system, there are 48x 2.5-inch drive bays supporting SAS, SATA or NVMe. To expand the capabilities of the Lenovo SR860 V3 Server there are 16x PCIe expansion slots available on the rear of the system with support for 4x double-width GPUs or 8x single-width GPUs.

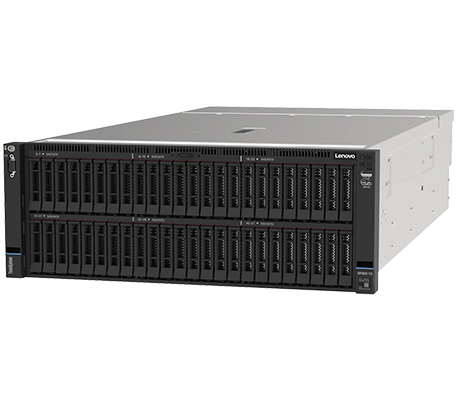

Lenovo SR860 V3 side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem SR860 V3 Server - System Overview

Lenovo ThinkSystem SR860 V3 front detail Lenovo ThinkSystem SR860 V3 detail top

Additional Features

The Lenovo ThinkSystem SR860 V3 Server is designed for high-performance graphical applications with support for 8x single-width GPUs. It is housed in 4U rackmountable chassis and supports 2x to 4x 4th Generation Intel Xeon Scalable CPUs. Along with the 48 drive bays up front, there are two 7mm hot swap bays that can be configured with RAID using virtual RAID on CPU (VROC). The system will also support an optional M.2 RAID adapter that can also be used to boot the system and can also be com-posed in a RAID using VROC. With 18 PCIe slots and 2x OCP 3.0 card slots there are plenty of opportunities to expand the capabilities of the system. This system is powered by 4x Platinum or Titanium level PSUs in a redundant configuration.

Lenovo ThinkSystem SR860 V3 Server - Specifications

Processor - 2 or 4 Sockets

  • 4th Generation Intel Xeon Scalable Processor

    • Socket:

  • 2 or 4 x LGA-4677

Memory

    Memory Slots:

  • 64 x DDR5 DIMM slots

    • Memory Capacity:

  • Up to 16TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Drive Bays:

  • 24 x 2.5" drive bays

    • Internal:

  • 2 x 7mm or 2x M.2 drives for boot

Expansion Slots

    PCIe Slots:

  • 12 x (8x Gen5 + 4x Gen4)
  • 7 x (6x Gen5 + 1x Gen4)
  • 12 x Gen4
  • 9 x Gen4 expansion slots

GPU Support

  • 2 x double-width 350W GPUs
  • 4 x single-width 75W GPUs

Ports

    Front:

  • VGA
  • 1 x USB 3.1
  • 1 x USB 2.0

    • Rear:

  • 1 x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot

HBA / RAID Support

  • Support for ThinkSystem PCIe RAID/HBA cards

System Management

  • Lenovo XClarity Controller
  • Redfish support

Power

  • 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported

Chassis

    Enclosure:

    Height: 3.4" (87mm)

    Width: 17.6" (447mm)

    Depth: 35.5" (902mm)

    Maximum Weight: 44.5 lbs (20.2kg)

Lenovo ThinkSystem SR860 V3 Server - Documentation

Lenovo ThinkSystem SR860 V3 Server Data Sheet Lenovo ThinkSystem SR860 V3 Server Product Guide Lenovo ThinkSystem SR860 V3 Server Setup Guide Lenovo ThinkSystem SR860 V3 Server User Guide
