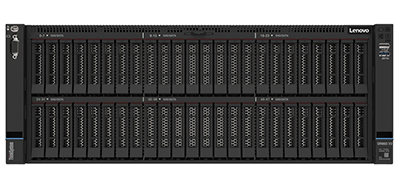

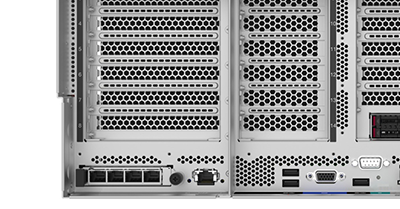

Housed in a 4U rackmountable chassis, the Lenovo ThinkSystem SR860 V3 Server supports 2x or 4x 4th Generation Intel Xeon Scalable processors. There are a total of 64x DDR5 DIMM slots on this system, which fully configured have a maximum memory capacity of 16TB. On the front of the system, there are 48x 2.5-inch drive bays supporting SAS, SATA or NVMe. To expand the capabilities of the Lenovo SR860 V3 Server there are 16x PCIe expansion slots available on the rear of the system with support for 4x double-width GPUs or 8x single-width GPUs.
Lenovo ThinkSystem SR860 V3 Server - System Overview
Additional Features
The Lenovo ThinkSystem SR860 V3 Server is designed for high-performance graphical applications with support for 8x single-width GPUs. It is housed in 4U rackmountable chassis and supports 2x to 4x 4th Generation Intel Xeon Scalable CPUs. Along with the 48 drive bays up front, there are two 7mm hot swap bays that can be configured with RAID using virtual RAID on CPU (VROC). The system will also support an optional M.2 RAID adapter that can also be used to boot the system and can also be com-posed in a RAID using VROC. With 18 PCIe slots and 2x OCP 3.0 card slots there are plenty of opportunities to expand the capabilities of the system. This system is powered by 4x Platinum or Titanium level PSUs in a redundant configuration.
Lenovo ThinkSystem SR860 V3 Server - Specifications
Processor - 2 or 4 Sockets
4th Generation Intel Xeon Scalable Processor
Socket:
2 or 4 x LGA-4677
Memory
Memory Slots:
64 x DDR5 DIMM slots
Memory Capacity:
Up to 16TB: 64x 256GB DRAM
Memory Speed:
Up to 4800MHz
Drive Bays
Drive Bays:
24 x 2.5" drive bays
Internal:
2 x 7mm or 2x M.2 drives for boot
Expansion Slots
PCIe Slots:
12 x (8x Gen5 + 4x Gen4)
7 x (6x Gen5 + 1x Gen4)
12 x Gen4
9 x Gen4 expansion slots
GPU Support
2 x double-width 350W GPUs
4 x single-width 75W GPUs
Ports
Front:
VGA
1 x USB 3.1
1 x USB 2.0
Rear:
1 x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
HBA / RAID Support
Support for ThinkSystem PCIe RAID/HBA cards
System Management
Lenovo XClarity Controller
Redfish support
Power
2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
