Lenovo ThinkSystem ST250 V3 Tower Server

Equipped with a single Intel Xeon E-2400 with up to 8 cores and a power rating of 95W, the Lenovo ThinkSystem ST250 V3 tower server delivers notable performance for a variety of workloads. It offers GPU support and comes with 4x PCIe slots for additional expansion options. This server utilizes Lenovo’s TruDDR5 memory technology, offering up to 128GB of RAM across 4x DIMM slots with 32GB UDIMMs operating at 4400MHz. Ideally, this platform is designed for managing IT infrastructure and handling edge computing tasks, making it an excellent choice for businesses looking to grow their operations and scale efficiently.

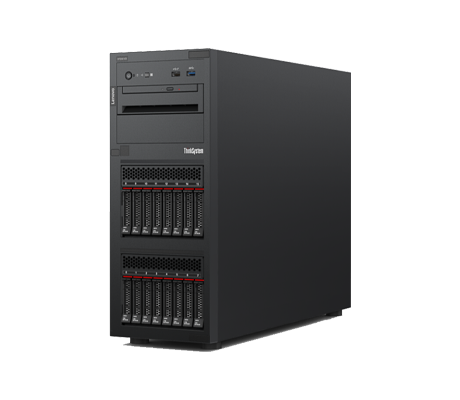

Lenovo ThinkSystem ST250 V3 Tower Server side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem ST250 V3 Tower Server - System Overview

Additional Information

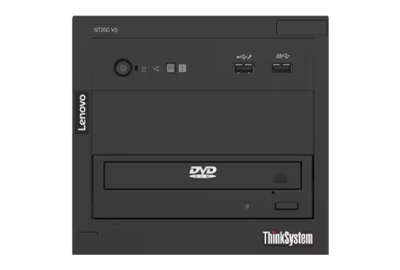

Lenovo ThinkSystem ST250 V3 Tower Server front

The ThinkSystem ST250 V3 tower server supports a single PCIe Gen5 x16 slot, allowing for the addition of either an NVIDIA Quadro T1000 or Quadro T400 GPU. Its 4U chassis offers flexible storage configuration options, Including 8x to 16x 2.5-inch bays or 4x to 8x 3.5-inch SAS, SATA, or NVMe bays. Additionally, the server includes 2x 5.25” media bays for optical drives or backup solutions.

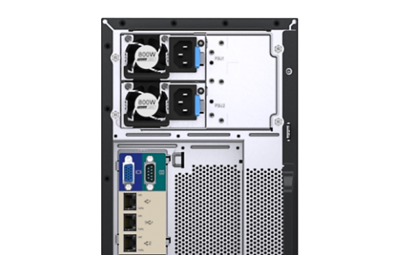

Lenovo ThinkSystem ST250 V3 Tower Server rear

Users can choose between a fixed 300W or 500W power supply, as well as dual 800W hot-swap power supplies for redundancy. XClarity system management makes it quick and easy to set up and manage servers, so less IT support is needed. It integrates seamlessly with other ThinkSystem servers already in use, allowing administrators to install the ThinkSystem ST250 V3 remotely and manage it from a centralized location. Built for small-to-medium businesses, remote offices, branch offices, banking and public sector, it supports high-performance, enterprise expansion options.


  • 2x PCIe x4 slot with PCH PCIe Gen4 x4 lanes
  • 1x PCIe x8 slot with PCH PCIe Gen4 x4 lanes
  • 1x PCIe x16 slot with CPU PCIe Gen5 x16 lanes

Lenovo ThinkSystem ST250 V3 Tower Server - Specifications

Processors - 1 Socket

  • 1x Intel Xeon E-2400 Processor
  • Up to 8x cores at 95W

Memory

  • Up to 128GB in 4x DIMM slots using 32GB UDIMMs 4400MHz TruDDR5

Drive Bays

  • 4 or 8x 3.5” simple-swap SATA/SAS HDD (Up to 2x NVMe SSDs) 4 or 8x 3.5” hot-swap SATA/SAS HDD
  • 8 or 16x 2.5” hot-swap SATA/SAS HDD
  • Hybrid 4x 3.5” + 8x 2.5” hot-swap SATA/SAS HDD
  • 2x 5.25” media bay (ODD/Tape)
  • 1x Internal USB 3.2 G1 (5Gb)
  • Optional 2x M.2 kit (SATA, in PCIe slots)

GPU

  • NVIDIA Quadro T1000
  • NVIDIA Quadro T400

Power Supplies

  • Fixed 300W (Gold) / 500W (Titanium) Power Supply Unit (PSU)
  • Redundant CRPS (Platinum) / CRPS (Titanium) PSU
  • Fixed and Redundant PSU meets ErP lot 9

Front I/O

  • Power button & LED
  • Ambient Thermal sensor
  • 1x USB 3.2 G1 (5 Gb/s) port
  • 1x USB 2.0 port (also supports XClarity Mobile connectivity for local systems management)

Rear I/O

  • 4x USB 3.2 G1 (5 Gbps) ports
  • 1x VGA video
  • 1x RJ-45 systems management
  • 2x RJ-45 GbE network ports
  • 1x Serial port
  • 1x NMI pinhole

Ports

    Front:

  • 1x USB 2.0 (XCC Mobile)
  • 1x USB 3.2 Gen1 (5Gb)

    • Rear:

  • 4x USB 3.2 G1 (5Gb/s) ports
  • 2x RJ45 Ethernet ports
  • 1x Dedicated Management port
  • 1x Serial port
  • 1x VGA port
  • 1x NMI button

Expansion Slots

    Support x8 Slimline with 2x PCH PCIe Gen4 x4 lanes
  • PCIe x4 slot with PCH PCIe Gen4 x4 lanes
  • PCIe x16 slot with CPU PCIe Gen5 x16 lanes
  • PCIe x4 slot with PCH PCIe Gen4 x4 lanes
  • PCIe x8 slot with PCH PCIe Gen4 x4 lanes

Network Interface

  • 2x 1GbE Embedded LOM
  • 1x 1GbE Dedicated Management port

Management

  • XClarity Controller with upgrades
  • Full XClarity software suite including XClarity Administrator
  • Dedicated Ethernet port for remote management
  • Optional intrusion switch and lockable door

OS Support

  • Microsoft Windows Server
  • SUSE
  • Red Hat
  • VMware vSphere
  • Microsoft Windows 10/11 tested

Lenovo ThinkSystem ST250 V3 Tower Server - Documentation

Lenovo ThinkSystem ST250 V3 Tower Server Data Sheet Lenovo ThinkSystem ST250 V3 Tower Server Product Guide Lenovo ThinkSystem ST250 V3 Tower Server User Guide Lenovo ThinkSystem ST250 V3 Tower Server Hardware Maintenance Guide
