Lenovo ThinkSystem ST50 V3 Tower Server

Designed for remote work, the Lenovo ThinkSystem ST50 V3 tower server features a compact a 17-liter chassis. With a small footprint and enterprise features, it’s an ideal entry-level system for growing businesses to manage their IT infrastructure and business applications. It is powered by either a single Intel Xeon E-2400 processor offering up to 8 cores or an Intel Pentium processor with up to 2 cores. Under the hood, the server supports 4x 32GB memory modules using Lenovo TruDDR5 UDIMMs with speeds at 4400 MHz, for a total of 128GB of RAM.

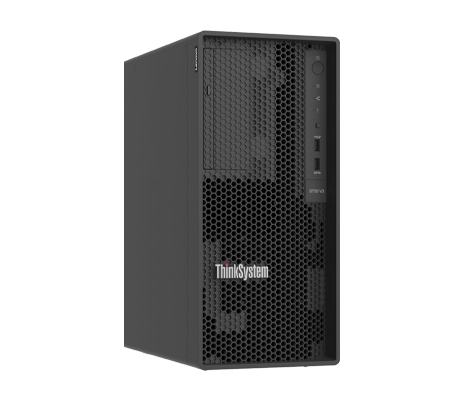

Lenovo ThinkSystem ST50 V3 Tower Server side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem ST50 V3 Tower Server - System Overview

Additional Information

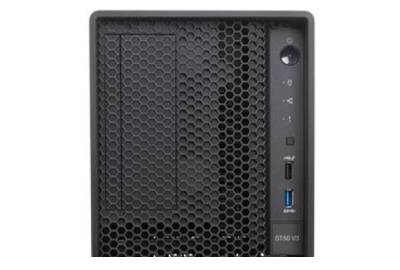

Lenovo ST50 V3 Tower Server front

As a small form-factor tower, the ThinkSystem ST50 V3 tower server can be deployed at a branch office and managed at the company’s main office, reducing the workload of branch IT managers. The motherboard features 1x Gen5 x16 slot with x16 link width, plus 2x PCIe x4 slots with Gen4 x4 lanes for high-performance expansion options. A variety of flexible storage configurations can support either 2.5-inch or 3.5-inch non-hot-swap drives. The following drive bays support SATA HDDs, SSDs and an optional slim optical disc drive.


  • Up to 1x 2.5-inch NHS drive bays
  • Up to 3x 3.5-inch NHS drive bays
  • Up to 1x slim SATA ODD bay (Optional)

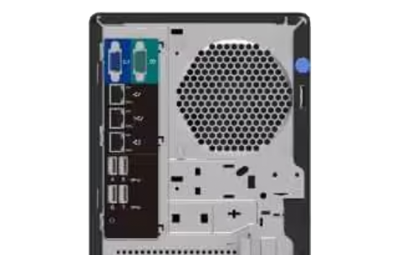

Lenovo ThinkSystem ST50 V3 Tower Server rear

In addition to the front panel drive bays, the ST50 V3 tower supports 2x M.2 drives for OS boot support with VROC RAID redundancy. A USB 2.0 port on the front panel facilitates XClarity Mobile connectivity for local system management, mirroring the rear port that enables remote access to the XCC2 management controller. This tower server is equipped with 1x fixed power supply, available in either 300W Gold or 500W Platinum ratings. With the Platinum power supply option, the Lenovo ST50 V3 is Energy Star 4.0 compliant.

Lenovo ThinkSystem ST50 V3 Tower Server - Specifications

Processors - 1 Socket

  • 1x Intel Xeon E-2400 Processor or 1x Intel Pentium processor
  • Up to 8x cores at 95W

Memory

  • Up to 128GB in 4x DIMM slots using 32GB UDIMMs 4400MHz TruDDR5

Drive Bays

  • 3x 3.5-inch HDDs or SSDs
  • 1x 2.5-inch SSD
  • 2x M.2 SATA SSD (PCIe adapter)
  • 1x Slim optical drive bay

Power Supplies

  • 1x Fixed power supply unit up to 500W with Platinum-level power efficiency

Front I/O

  • 1x USB 3.2 G1 (5 Gb/s) port
  • 1x USB 2.0 port (also for XClarity Mobile connectivity for local systems management)

Rear I/O

  • 4x USB 3.2 G1 (5 Gbps) ports
  • 1x VGA video
  • 1x RJ-45 systems management
  • 2x RJ-45 GbE network ports
  • 1x Serial port

Ports

    Front:

  • 1x USB 3.2 Gen1 (5Gb/s) port
  • 1x USB 2.0 port (Support XCC management)

    • Rear:

  • 4x USB 3.2 G1 (5Gb/s) ports
  • 2x RJ45 Ethernet ports
  • 1x Dedicated Management port
  • 1x Serial port
  • 1x VGA port
  • 1x NMI button

Expansion Slots

  • 1x PCIe x16 slot with Gen5 x16 lanes
  • 2x PCIe x4 slot with Gen4 x4 lanes

Network Interface

  • 2x 1GbE Embedded (Broadcom BCM5720)
  • 1x 1GbE Dedicated Management port

Management

  • XClarity Controller with upgrades
  • Full XClarity software suite including XClarity Administrator
  • Dedicated Ethernet port for remote management
  • Optional intrusion switch
  • Platform Firmware Resiliency (PFR) hardware Root of Trust

OS Support

  • Microsoft
  • SUSE
  • Red Hat
  • VMware vSphere
  • CentOS

Lenovo ThinkSystem ST50 V3 Tower Server - Documentation

Lenovo ThinkSystem ST50 V3 Tower Server Data Sheet Lenovo ThinkSystem ST50 V3 Tower Server Product Guide Lenovo ThinkSystem ST50 V3 Tower Server System Configuration Guide Lenovo ThinkSystem ST50 V3 Tower Server Hardware Maintenance Guide
