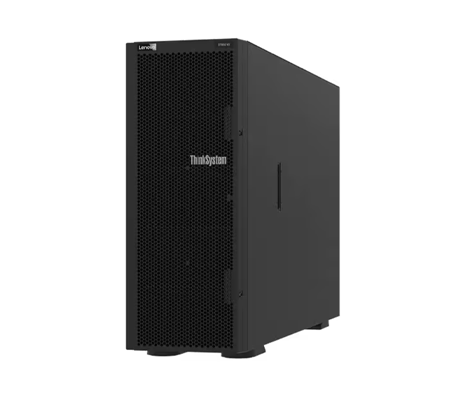

Lenovo ThinkSystem ST650 V3 Server

The 4U Lenovo ThinkSystem ST650 V3 tower server offers dual 4th generation Intel Xeon Scalable processors with a maximum TDP of up to 250W for up to 32 cores. A total of 32x DDR5 DIMMs can bwe installed in the system for a maximum of 4TB of RAM using 128GB RDIMMs. On the front of the chassis, there are 32x 2.5-inch hybrid drive bays, including 24x optional NVMe bays, or 16x 3.5-inch drives, including 16x optional NVMe bays. Although the previous ThinkSystem ST650 V2 supported Intel Optane Persistent Memory 200 series, this machine does not.

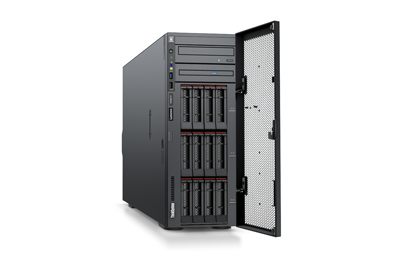

Lenovo ThinkSystem ST650 V3 side view
Lenovo Partner Gold Intel Partner Gold NVIDIA Elite Partner

Lenovo ThinkSystem ST650 V3 Server - System Overview

As a two-socket server, the Lenovo ThinkSystem ST650 V3 is a highly configurable tower supporting up to 9x PCIe slots with 5x Gen 5 and 4x Gen 4 slots available. With up to 80x PCIe 5.0 lanes per processor, there is plenty of room for expansion. The system can be outfitted with 8x single-width (SW), 4x double-width (DW), or a combination of 4x SW and 4x DW GPUs, to accelerate breakthroughs. As a GPU-rich tower server, it maximizes performance by handling huge data blocks for workloads such as video creation and editing. Powering this system are dual redundant 2600W Titanium AC power supplies. To manage this server, Lenovo’s XClarity software can deliver backups, updates, and monitoring.

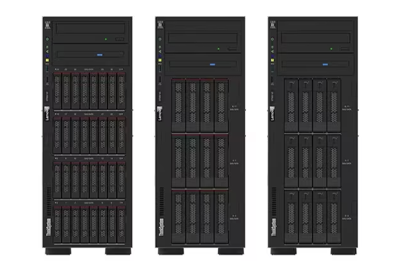

Lenovo ThinkSystem ST650 V3 Server Configurations Lenovo ThinkSystem ST650 V3 Server external screen

Lenovo ThinkSystem ST650 V3 Server - Specifications

Processors - 2 Socket

  • 2x 4th generation Intel Xeon Scalable CPUs
  • TDP up to 250W
  • Up to 32 cores

Memory

  • 32 x TruDDR5 DIMM slots
  • Maximum 4TB using 128GB DIMMs
  • DIMM speeds up to 4800 MHz

Drive Bays

  • Up to 32x 2.5" bays (including 24 NVMe bays) or 16x 3.5" bays (including 16 NVMe bays)

Power Supplies

  • Dual redundant AC power supplies up to 2600W Titanium
  • Energy Star 3.0 compliant

Fans

  • Up to 4x single-rotor or dual-rotor hot-swap 92mm fans
  • N+1 redundant

Ports

    Front:

  • 1x USB 3.1 G1 (5Gb/s) port
  • 1x USB 2.0 port (also for XCC local management)
  • 1x VGA (optional)

    • Rear:

  • 2x 10GBASE-T RJ45 Ethernet ports
  • 4x USB 3.1 G1 (5 Gb/s) ports
  • 1x VGA video port
  • 1x DB-9 COM serial port
  • 1x 1GbE RJ-45 systems management port for XCC remote management
  • External diagnostics port

    • Internal:

  • 2x USB 3.1 G1 connector for operating system or license key purposes

Expansion Slots

    9x PCIe slots:
  • Slot 1: PCIe 5.0 x16 (CPU 1)
  • Slot 2: PCIe 5.0 x8 (x8 physical slot) (CPU 1)
  • Slot 3: PCIe 5.0 x16 (CPU 1)
  • Slot 4: PCIe 5.0 x8 (x8 physical slot) (CPU 1)
  • Slot 5: PCIe 5.0 x16 (CPU 2)
  • Slot 6: PCIe 4.0 x8 (x8 physical slot) (CPU 2)
  • Slot 7: PCIe 4.0 x16 (CPU 2)
  • Slot 8: PCIe 4.0 x8 (x8 physical slot) (CPU 2)
  • Slot 9: PCIe 4.0 x8 (x8 physical slot) (CPU 1)

GPUs

  • Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs

Dimensions

    Height: 462mm (18.2")
    Width: 175mm (6.9")
    Depth: 734mm (28.9")
    Maximum Weight: 39.1 kg (86.2 lb) maximum

Management

  • XClarity support
  • ASPEED 2600

Lenovo ThinkSystem ST650 V3 Server - Documentation

Lenovo ThinkSystem ST650 V3 Data Sheet Lenovo ThinkSystem ST650 V3 Product Guide
