Featuring 3072 CUDA cores and 48 ray tracing cores, the Nvidia Quadro RTX 5000 16GB GPU can efficiently handle challenging workloads in design and visualization. Using NVLink to connect a second RTX 5000 GPU, the combined cards will provide up to 32GB of low-latency memory. Creative and technical experts can render complex models and scenes with realistic shadows, reflections, and refractions for quality results.
This GPU supports 16GB of GDDR6 memory through a 256-bit memory interface. It operates at a frequency of 1620MHz, which can be increased up to 1815MHz. The RTX 5000 supports double the memory compared to the RTX 2080 series. Users are able to link two Quadro RTX 5000 cards for up to 50GB per second bidirectional bandwidth and a combined 32GB of GDDR6 memory when using NVIDIA NVLink. The memory on this graphics card allows professional applications to conveniently scale memory with multi-GPU configurations, all while safely processing data. To tackle large rendering, AI, VR, or visualization projects, the NVIDIA RTX 5000 features error correcting code (ECC) for maximum accuracy and reliability.
The NVIDIA RTX 5000 is armed with 48 ray tracing cores, 384 tensor cores for artificial intelligence, and 3072 CUDA cores for parallel computing. The RTX stands for ray tracing extreme, meaning it has the power to render accurate shadows, refractions, and reflections. The GPU has 13,600 million transistors, supportive of this new and more powerful processor. It also offers 22.3 TFLOPS of FP16 performance, 11.15 TFLOPS of FP32 performance, and 348.5 GFLOPS of FP64 performance. It’s an ideal workstation solution for creative and technical professionals.

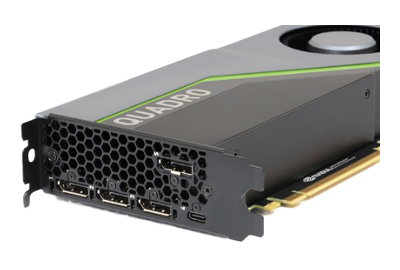

A blower-style cooler is used by this dual-slot graphics card to enable better cooling on servers, and densely packed workstations. Unlike most consumer-type GPUs, the RTX 5000 doesn’t use a backplate. On the side bracket there are 4x DisplayPorts, and a single VirtualLink port for VR head-mounted displays. On the top end of the GPU there is a single 8-pin and a single 6-pin power connection, which in addition to the power from the slot provide 265 watts of power.
NVIDIA’s Turing architecture is the driving force behind the NVIDIA Quadro RTX 5000 16GB GPU. It is able to deliver 48 ray tracing cores, 384 tensor cores, and 3072 CUDA cores for photorealistic global lighting effects. With support for 16GB of memory, it can be scaled to 32GB of memory with the addition of a second RTX 5000 GPU using NVIDIA NVLink. The RTX 5000 is designed for next-generation workloads with the ability to render photorealistic scenes in real-time for faster and better results.
