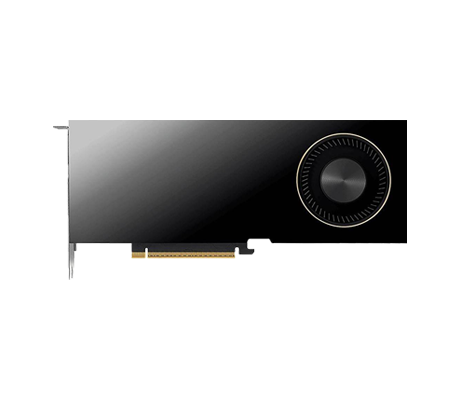

NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition - System Overview
The NVIDIA RTX 6000 Blackwell Max-Q Workstation Edition has a PCIe 5.0 x16 interface and requires 300W of juice with a 16-pin power connector. PCIe 5.0 offers double the bandwidth compared to PCIe 4.0., delivering faster GPU to CPU communication. There are 4x DisplayPort 2.1b ports for attaching up to 4x 4K displays with a refresh rate of 120Hz or two monitors at 8K and a 60Hz refresh rate. DLSS 4 Multi Frame Generation allows for 3x the frame rates, and significantly improved video playback. With the powerful performance of the RTX 6000 Blackwell Max-Q Workstation, up to 4x GPUs can be enabled in a single system for complex simulations, AI training, and 3D rendering.
The RTX 6000 Max-Q delivers 24,064 NVIDIA Cuda Cores paired with memory bandwidth that is an incredible 1792GB/s enabling more complex graphics rendering and for running complex calculations and simulations. It offers 3511 TOPS or Trillions of Operations Per Second to deliver significant performance for AI applications. With MIG, users can perform multiple workloads on the same GPU, optimizing GPU utilization.
