Product Details:

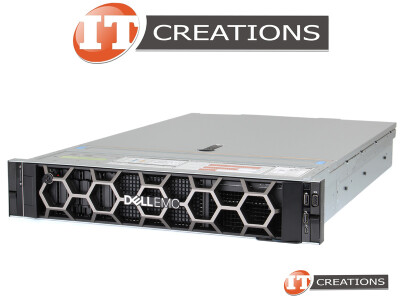

DELL EMC POWEREDGE R740 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 2U SERVER CHASSIS - SMALL FORM FACTOR 8B / 8SFF HOT PLUG HARD DRIVE ( CHECK REAR / CENTER HD BACKPLANE AND CAGES FOR AVAILABLE OPTIONS ) HOT PLUG POWER SUPPLY
MANUFACTURER: DELL
PART NUMBER: DELL R740 2.5 8 BAY
NOTE: THIS SERVER IS A 2.5 INCH SFF 8 BAY MODEL. CHASSIS DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES ( CASCADE LAKE ) / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES ( SKYLAKE )
PROCESSOR CORE COUNT: UP TO 28 CORES PER SOCKET
PROCESSOR TDP: UP TO 205W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS RDIMM / LRDIMM OR ( 12 ) TWELVE NVDIMM / DCPMM ( INTEL OPTANE DC PERSISTENT MEMORY SERIES )
RDIMM MEMORY SIZE: UP TO 3TB ECC
LRDIMM MEMORY SIZE: UP TO 3TB
NVDIMM MEMORY SIZE: UP TO 192GB
DCPMM MEMORY SIZE: UP TO 6.14TB
DCPMM+LRDIMM MEMORY SIZE: UP TO 7.68TB
MEMORY SPEEDS: DDR4-2933MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )
NUMBER OF CHANNELS: 6 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- 12 DIMMs AVAILABLE PER PROCESSOR
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 2.5 INCH SFF HOT PLUG HARD DRIVES ( HDD OR SSD )
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 SSD VIA PCIE BOSS CARD ( OPTIONAL )
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL: SAS / SATA / NVME
FRONT BAYS MAX STORAGE SIZE: 61.44TB ( SAS / SATA HDD OR SSD )
M.2 VIA BOOT MAX STORAGE SIZE: 2 X 240GB OR 2 X 480GB
NOTE:
- MAX BAY OPTION FOR R740 2.5 SFF IS 16 BAY
- BOSS MODULE IS OPTIONAL - NOT INCLUDED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 4 ) FOUR PCI-E SLOTS ( 1 ) ONE RNDC SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES MAY VARY ( LANE SPEEDS ARE DEPENDENT ON INTERFACE POPULATION )
- PCI INTERFACES VARY
- ( 1 ) ONE RNDC SLOT
NOTE:
- SUPPORTS ADDITIONAL 4 PCIE INTERFACES - OPTIONAL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 495W / 750W / 1100W / 1600W / 2000W / 2400W ( PER SLOT )
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS SUPPORTED
- CANONICAL UBUNTU SERVER LTS
- CITRIX HYPERVISOR
- MICROSOFT WINDOWS SERVER LTSC WITH HYPER-V
- ORACLE LINUX
- RED HAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON DELL TECHNICAL GUIDE DOCUMENTATION DATED DECEMBER 2021 - INFORMATION MAY CHANGE
