Product Details:

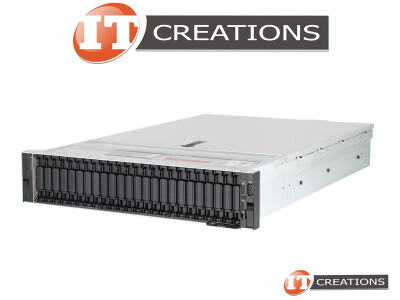

DELL EMC POWEREDGE R7425 RACK 2.5 INCH SFF 24 BAY HPHD HPPS 2U SERVER CHASSIS - SMALL FORM FACTOR 24B / 24SFF HOT PLUG HARD DRIVE HOT PLUG POWER SUPPLY
MANUFACTURER: DELL
PART NUMBER: DELL R7425 2.5
NOTE: THIS SERVER IS A 2.5 INCH SFF 24 BAY MODEL. CHASSIS DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPU
PROCESSOR SOCKET TYPE: SP3
PROCESSOR COMPATIBILITY: 1ST GEN AMD EPYC PROCESSOR FAMILY ( 7001 SERIES )
PROCESSOR CORE COUNT: UP TO 32 CORES PER SOCKET
PROCESSOR TDP: UP TO 180W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY TYPE SUPPORTED: RDIMM / LRDIMM
RDIMM MEMORY SIZE CAPACITY: UP TO 1B
LRDIMM MEMORY SIZE CAPACITY: UP TO 2TB
MEMORY SPEEDS: DDR4-2666MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- MEMORY SPEEDS VARY BASED ON NUMBER OF DIMMs PER CHANNEL
- MEMORY CAPACITY MAY VARY BASED ON DIMM RANK
- UNBUFFERED DIMMs ARE NOT SUPPORTED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT PLUG HARD DRIVES
STORAGE TYPE: HDD / SSD / PCIE NVME
STORAGE PROTOCOL: SATA3 / SAS3
ADDITIONAL HARD DRIVE SUPPORT: UP TO ( 4 ) FOUR 3.5 INCH LFF OR 2.5 INCH SFF ( MIDPLANE BAY IS OPTIONAL ) + ( 4 ) FOUR 2.5 INCH OR ( 2 ) TWO 3.5 INCH LFF ( REAR BAY IS OPTIONAL )
NOTE:
- 3.5 INCH LFF 8 BAY / 3.5 INCH LFF 12 BAY ALSO AVAILABLE - PLEASE CHECK AVAILABILITY
- MIDPLANE BAY IS OPTIONAL - PLEASE CHECK AVAILABILITY
- REAR BAY IS OPTIONAL - PLEASE CHECK AVAILABILITY
- SAS / SATA PROTOCOL COMPATIBLE WITH BOTH OPTIONAL MIDPLANE AND REAR BAY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 7 ) SEVEN PCI-E SLOTS ( 3 PCIE SLOTS IS STANDARD ) ( 1 ) ONE OCP MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES MAY VARY
- 3X16 GEN3 FH ( FULL HEIGHT / HIGH PROFILE )
- ( 1 ) ONE OCP 2.0 MEZZANINE SLOT
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 495W / 750W / 1100W / 1600W / 2000W / 2400W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS SUPPORTED
- MICROSOFT WINDOWS SERVER WITH HYPER-V
- REDHAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI 6.7
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON DELL TECHNICAL GUIDE DOCUMENTATION DATED MARCH 2021 - INFORMATION MAY CHANGE
