Product Details:

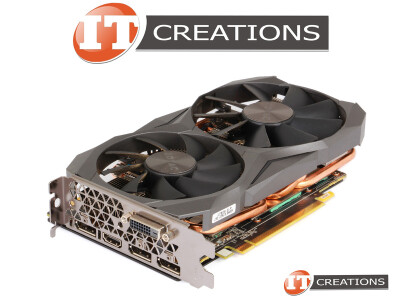

ZOTAC NVIDIA GEFORCE GTX 1080 MINI PASCAL GPU 8GB 2560 CUDA CORES MEMORY INTERFACE 256 BIT GDDR5X MEMORY BANDWIDTH 320GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-D ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - 1620MHZ BASE CLOCK 1759MHZ BOOST CLOCK 10GHZ MEMORY CLOCK ( 2 ) TWO SLI INTERFACES ( 1 ) ONE 8 PIN POWER CONNECTOR
MANUFACTURER: ZOTAC / NVIDIA
PART NUMBER: 288-1N451-001Z8
ENGINE SPECS:
ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 2560
GPU CLOCK ( BASE ): 1620 MHZ
BOOST CLOCK: 1759 MHZ
FP32 PERFORMANCE: 9 TFLOPS ( TERAFLOPS )
TEXTURE UNITS: 281 GTEXELS/S
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 320 GB/S
MEMORY CLOCK: 10 GB/S ( 1251 MHZ / EFFECTIVE: 10,008 MHZ )
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY, SIMULTANEOUS MULTI PROJECTION, VR READY, NVIDIA ANSEL, NVIDIA SLI READY ( VIA BRIDGE ), NVIDIA G-SYNC READY, NVIDIA GAMESTREAM READY, NVIDIA GPU BOOST, DIRECTX 12 API, VULKAN API, OPENGL 4.5, HDCP SUPPORT, MULTI FRAME SAMPLED ANTI ALIASING ( MFAA ), DYNAMIC SUPER RESOLUTION ( DSR ), VOXEL GLOBAL ILLUMINATION ( VXGI )
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX, FREEBSD X86
DISPLAY SUPPORT:
MAXIMUM DIGITAL RESOLUTION: 7680 X 4320 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-D ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 180W
MAX GPU TEMPERATURE ( IN C ): 94
RECOMMENDED SYSTEM POWER ( W ): 500W
COOLING SYSTEM:
X2 FANS - ACTIVE FANSINK POWERED BY ICESTORM TECHNOLOGY
FORM FACTOR:
DUAL SLOT, FULL HEIGHT
