Product Details:

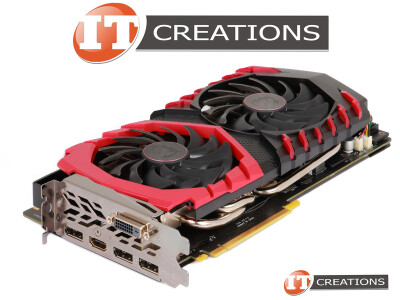

MSI NVIDIA GEFORCE GTX 1080 GAMING X PASCAL GPU 8GB MEMORY INTERFACE 256 BIT GDDR5 PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-D ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - TWIN FROZR VI ( 2 ) TWO SLI INTERFACES ( 1 ) ONE 8 PIN POWER CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
MANUFACTURER: MSI / NVIDIA
PART NUMBER: G1080GX8
ENGINE SPECS:
ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 2560
GPU CLOCK ( BASE ): 1683 MHZ ( GAMING MODE )
BOOST CLOCK: 1822 MHZ ( GAMING MODE )
FP32 PERFORMANCE: 9 TFLOPS ( TERAFLOPS )
TEXTURE UNITS: 160
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 320 GB/S
MEMORY CLOCK: 10 GB/S ( 1251 MHZ / EFFECTIVE: 10,008 MHZ )
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: TORX FAN 2.0, DOUBLE BALL BEARING ( FANS ), ZERO FROZR, RGB MYSTIC LIGHT, MILITARY CLASS 4 COMPONENTS, NVIDIA CUDA CORE TECHNOLOGY, SIMULTANEOUS MULTI PROJECTION, VR READY, NVIDIA ANSEL, NVIDIA SLI READY ( VIA BRIDGE ), NVIDIA G-SYNC READY, NVIDIA GAMESTREAM READY, NVIDIA GPU BOOST, DIRECTX 12 API, VULKAN API, OPENGL 4.5, HDCP SUPPORT, MULTI FRAME SAMPLED ANTI ALIASING ( MFAA ), DYNAMIC SUPER RESOLUTION ( DSR ), VOXEL GLOBAL ILLUMINATION ( VXGI )
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX, FREEBSD X86
DISPLAY SUPPORT:
MAXIMUM DIGITAL RESOLUTION: 7680 X 4320 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-D CONNECTOR ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI CONNECTOR
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI CONNECTORS
POWER CONNECTORS: ( 1 ) ONE 8 PIN CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 180W
RECOMMENDED SYSTEM POWER ( W ): 500W
COOLING SYSTEM:
ACTIVE FANSINK ( 2 ) TWO FAN COOLING POWERED BY TWIN FROZR VI TECHNOLOGY
FORM FACTOR:
DUAL SLOT, FULL HEIGHT, FULL LENGTH
