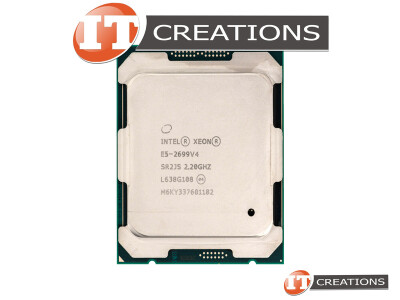

INTEL XEON 22 CORE PROCESSOR E5-2699V4 2.20GHZ 55MB SMART CACHE 9.6 GT/S BUS SPEED TDP 145W FCLGA2011-3 ( SOCKET R3 ) ( BROADWELL ) (E5-2699V4)

Product Details:

INTEL XEON 22 CORE PROCESSOR E5-2699V4 2.20GHZ 55MB SMART CACHE 9.6 GT/S BUS SPEED TDP 145W FCLGA2011-3 ( SOCKET R3 ) ( BROADWELL )

MANUFACTURER: INTEL
PART NUMBER: E5-2699V4
CPU SERIES: INTEL XEON E5 V4 FAMILY ( E5-2600V4 SERIES )
PROCESSOR CODE NAME: BROADWELL
SOCKETS SUPPORTED: FCLGA2011-3 ( SOCKET R3 )
MAX CPU CONFIGURATION: 2
COOLING DEVICE: NOT INCLUDED - PROCESSOR ONLY

PERFORMANCE

CPU FREQUENCY: 2.20GHZ
MAX TURBO FREQUENCY: 3.60GHZ
INTEL TURBO TECHNOLOGY 2.0 FREQUENCY: 3.60GHZ
MULTI-CORE: 22-CORE
THREADS: 44
CACHE: 55MB INTEL SMART
BUS SPEED: 9.6 GT/S
NUMBER OF QPI LINKS: 2
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER ( TDP ): 145W
VID VOLTAGE RANGE: 0

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1.5TB ( 1,500GB )
MEMORY TYPES: DDR4
MEMORY SPEEDS SUPPORTED: 1600 MHZ / 1866 MHZ / 2133 MHZ / 2400 MHZ
MAX NUM. MEMORY CHANNELS: 4
MAX MEMORY BANDWIDTH: 76.8GB/S
PHYSICAL ADDRESS EXTENSIONS: 46 BIT
ERROR CORRECTION CODE MEMORY ( ECC ): YES

EXPANSION OPTIONS

SCALABILITY: 2S
PCI EXPRESSION REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: X4, X8, X16
MAX NUM. OF PCI LANES: 40

ADVANCED TECHNOLOGIES

INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL vPRO PLATFORM ELIGIBILITY: YES
INTEL HYPER-THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET: 64-BIT
INSTRUCTION SET EXTENSIONS: AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL DEMAND BASED SWITCHING: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL FLEX MEMORY ACCESS: NO
INTEL IDENTITY PROTECTION TECHNOLOGY: NO

SECURITY & RELIABILITY

INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
