Product Details:

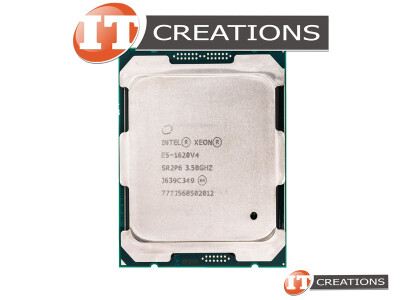

INTEL XEON QUAD CORE PROCESSOR E5-1620V4 3.50GHZ 10MB CACHE 0 GT/S BUS SPEED TDP 140W FCLGA2011-3 ( SOCKET R3 ) ( BROADWELL )
MANUFACTURER: INTEL
PART NUMBER: E5-1620V4
CPU SERIES: INTEL XEON E5 V4 FAMILY ( E5-1600V4 SERIES )
PROCESSOR CODE NAME: BROADWELL
SOCKETS SUPPORTED: FCLGA2011-3 ( SOCKET R3 )
MAX CPU CONFIGURATION: 1
COOLING DEVICE: NOT INCLUDED - PROCESSOR ONLY
PERFORMANCE
CPU FREQUENCY: 3.50GHZ
CPU MAX TURBO FREQUENCY: 3.80GHZ
MULTI-CORE: QUAD-CORE ( 4 CORE )
THREADS: 8
CACHE: 10MB
BUS SPEED: 0 GT/S
NUMBER OF QPI LINKS: 0
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 140W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1.5TB ( 1,500GB )
MEMORY TYPES: DDR4
MEMORY SPEEDS SUPPORTED: 1600 MHZ / 1866 MHZ / 2133 MHZ / 2400 MHZ
MAX NUM. MEMORY CHANNELS: 4
MAX MEMORY BANDWIDTH: 76.8GB/S
PHYSICAL ADDRESS EXTENSIONS: 46 BIT
ERROR CORRECTION CODE MEMORY ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: X4, X8, X16
MAX NUM. OF PCI LANES: 40
ADVANCED TECHNOLOGIES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL HYPER-THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: ADVANCED VECTOR EXTENSIONS 2.0 ( AVX 2.0 )
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL DEMAND BASED SWITCHING: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL FLEX MEMORY ACCESS: NO
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
SECURITY AND RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD NEW INSTRUCTIONS ( AES ): YES
SECURE KEY: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
