Product Details:

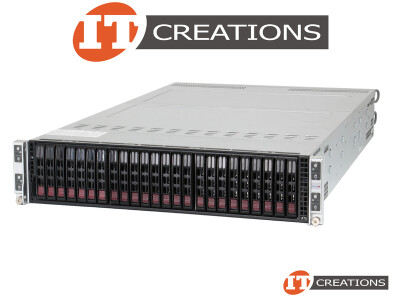

SUPERMICRO SUPERSERVER 2028TP-HTTR X4 NODE 2.5 INCH SFF 24 BAY HSHD HSPS PRE CONFIGURATION 2U SERVER CHASSIS - EACH NODE SUPPORTS X10DRT-PT MOBO ( 2 ) TWO FCLGA2011-3 R3 SOCKETS ( COMPATIBLE WITH INTEL XEON E5-2600V4 / E5-2600V3 FAMILY ( 16 ) SIXTEEN DDR4 DIMM SLOTS ( 1 ) ONE PCI-E 3.0 X16 SLOT - SMALL FORM FACTOR 24B / 24SFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: SYS-2028TP-HTTR
CONFIGURATION INCLUDES: ( 1 ) ONE 2U SERVER CHASSIS ( 4 ) FOUR 1U NODES ( 2 ) TWO HEATSINKS PER NODE ( 2 ) TWO 2000W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL KIT
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT PER NODE
PROCESSOR SOCKET TYPE: FCLGA2011-3 ( R3 SOCKET )
MAX NUMBER PROCESSOR SUPPORTED: ( 2 ) TWO CPUs PER NODE
PROCESSOR COMPATIBILITY: INTEL XEON E5-2600V4 FAMILY / INTEL XEON E5-2600V3 FAMILY
PROCESSOR TDP: UP TO 145W
PROCESSOR CORE COUNT: UP TO 22 CORES
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- 2 PROCESSORS PER NODE - 4 NODES WITH THIS CONFIGURATION ( 8 PROCESSORS TOTAL )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT PER NODE
MEMORY SUPPORTED: ( 16 ) SIXTEEN DIMM SLOTS
MEMORY SIZE: UP TO 2TB LRDIMM / 3DS LRDIMM OR 512GB RDIMM
MEMORY SPEEDS: UP TO DDR4-2400MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT SWAP HARD DRIVES ( 6 DRIVES PER NODE )
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S )
NOTE:
- NO STORAGE INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT PER NODE
NUMBER OF PCI SLOTS SUPPORT: ( 1 ) ONE PCIE SLOT
PCI INTERFACE TYPE: ( 1 ) ONE PCI-E 3.0 X16 ( HALF HEIGHT )
NETWORKING PER NODE
- ( 2 ) TWO 10GBASE-T LAN PORTS ( RJ45 / RJ-45 ) ( INTEL X540 ONBOARD )
- ( 1 ) ONE INTEGRATED IPMI 2.0 WITH KVM AND DEDICATED LAN PORT ( RJ45 / RJ-45 ) ( ONBOARD )
NOTE:
- NETWORK CARDS ARE OPTIONAL - NO NICs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPLY
- ( 2 ) TWO 2000W POWER SUPPLIES
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016
- MICROSOFT WINDOWS SERVER 2012 R2
- MICROSOFT WINDOWS SERVER 2012
- MICROSOFT WINDOWS SERVER 2008 R2
- RHEL 7
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON SUPERMICRO DOCUMENTATION DATED FEBRUARY 2018 - INFORMATION MAY CHANGE
