Product Details:

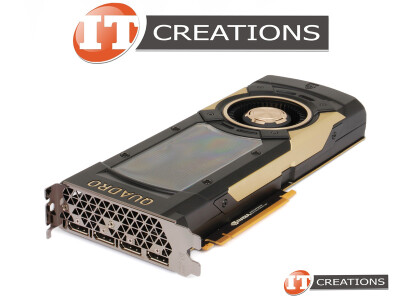

NVIDIA QUADRO GV100 VOLTA GPU 32GB HBM2 5120 CUDA CORES 640 TENSOR CORES MEMORY INTERFACE 4096 BIT MEMORY BANDWIDTH 870GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 2 ) TWO NVLINK INTERFACES ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO PORT ( 1 ) ONE 8 PIN POWER CONNECTOR
MANUFACTURER: NVIDIA
PART NUMBER: 699-5G500-0500-400
ENGINE SPECS:
ENGINE ARCHITECTURE: VOLTA
CUDA CORES: 5120
TENSOR CORES: 640
GPU CLOCK: 1132 MHZ
BOOST CLOCK: 1628 MHZ
FP64 PERFORMANCE: 7.4 TFLOPS ( TERAFLOPS )
FP32 PERFORMANCE: 14.8 TFLOPS ( TERAFLOPS )
FP16 PERFORMANCE: 29.6 TFLOPS ( TERAFLOPS )
TENSOR PERFORMANCE: 118.5 TFLOPS ( TERAFLOPS )
MEMORY:
MEMORY CONFIGURATION: 32GB
MEMORY INTERFACE: HBM2
MEMORY INTERFACE WIDTH: 4096 BIT
MEMORY BANDWIDTH: 870 GB/S
MEMORY CLOCK: 848 MHZ ( EFFECTIVE: 1696 MHZ )
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY, NVIDIA NVLINK TECHNOLOGY, NVIDIA GPUDIRECT, NVIDIA MOSAIC, NVIDIA NVIEW, OPENGL, FULL SCENE ANTIALIASING ( FSAA ), HDCP SUPPORT, SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, DIRECTCOMPUTE, OPENCL
OPERATING SYSTEM: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX
DISPLAY SUPPORT:
MAXIMUM DP 1.4 RESOLUTION: 7820 x 4320 AT 60HZ
5K DISPLAY SUPPORT: 5120 x 2880 AT 60HZ
4K DISPLAY SUPPORT: 4096 X 2160 AT 60HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ ( VIA ADAPTER )
MAXIMUM DVI-D SL RESOLUTION: 1920 X 1200 AT 60HZ ( VIA ADAPTER )
MULTI MONITOR: YES
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO NVLINK INTERFACES
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 250W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR
COOLING SYSTEM:
ACTIVE FANSINK
FORM FACTOR:
DUAL SLOT, FULL HEIGHT
