Product Details:

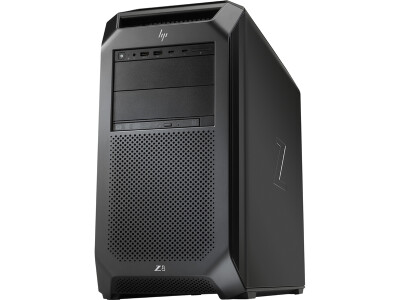

HP Z8 G4 WORKSTATION
MANUFACTURER: HP
PART NUMBER: HP Z8 G4 W10
CONDITION: NEW, REFURBISHED, USED
NOTE: CONFIGURATION OPTIONS VARY, PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR DETAILS
PROCESSORS SUPPORTED
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs TOTAL
PROCESSOR SOCKETS TYPE: FCLGA4189 ( SOCKET P+ )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES
MEMORY SUPPORTED
MEMORY SIZE CAPACITY: UP TO 1.5TB ( RDIMM ) OR 3TB ( 3DS LRDIMM )
MEMORY SPEEDS: UP TO DDR4-2933MHZ
NUMBER OF MEMORY SUPPORTED: ( 24 ) TWENTY FOUR DDR4 DIMMs TOTAL
NUMBER OF CHANNELS: UP TO 12 CHANNELS
-NOTE: CAPACITY AND SPEEDS ARE DEPENDENT ON THE PROCESSOR MODEL
STORAGE SUPPORT
HARD DRIVE SUPPORT: ( 4 ) FOUR 3.5 INCH LFF DRIVE BAYS ( HDDs / SSDs )
ADDITIONAL STORAGE SUPPORT: M.2 SSDs ( VIA PERSONALITY MODULE / Z TURBO DRIVE DUAL PRO / Z TURBO DRIVE QUAD PRO
STORAGE PROTOCOL SUPPORT: SATA / SAS / PCIE NVME
-NOTE: SAS CARD REQUIRED FOR SAS DEVICES SUPPORT
EXPANSION BAY
MEDIA BAY COUNT AND SIZE: ( 2 ) TWO 5.25 INCH BAYS + 9.5MM SLIMLINE OPTICAL BAY
MEDIA OPTIONS: SUPPORTS ADDITIONAL STORAGE CONFIGURATIONS ( HDDs / SSDs ) AND OPTICAL DISC DRIVE ( ODD )
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 7 ) SEVEN PCIE SLOTS + ( 2 ) TWO PERSONALITY MODULE SLOTS
PCI INTERFACE TYPE:
- SLOT 1 PCI-E 3.0 X4 ( X8 WHEN 2ND CPU IS INSTALLED )
- SLOT 2 PCI-E 3.0 X16
- SLOT 3 PCI-E 3.0 X16 ( AVAILABLE WHEN 2ND CPU IS INSTALLED )
- SLOT 4 PCI-E 3.0 X16
- SLOT 5 PCI-E 3.0 X4
- SLOT 6 PCI-E 3.0 X16 ( AVAILABLE WHEN 2ND CPU IS INSTALLED )
- SLOT 7 PCI-E 3.0 X4
GRAPHICS
- NO INTEGRATED GFX ( SUPPORTS NVIDIA / AMD BASED GRAPHICS VIDEO CARDS - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR DETAILS )
OPERATING SYSTEM SUPPORTED
- WINDOWS 11 ( WHEN AVAILABLE ) / WINDOWS 10 / UBUNTUS / LINUX
NETWORKING
- ( 2 ) TWO 1GB/S LAN PORTS ( X1 INTEL I219LM / X1 X722 ) ( SUPPORTS ADDITIONAL NETWORK OPTIONS - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR DETAILS )
POWER SUPPLY SUPPORTED
WATTAGE: 1125W, 1450W OR 1700W
CERTIFICATION: 90% EFFICIENCY
