Product Details:

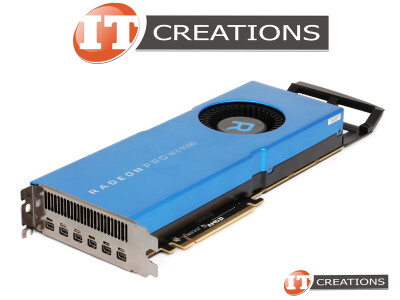

HP AMD RADEON PRO WX 9100 GPU 16GB 4096 STREAM CORES MEMORY INTERFACE 2048 HBM2 MEMORY BANDWIDTH 484GB/S PCI-E 3.0 X16 ( 6 ) SIX MINI DISPLAYPORTS MDP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 1 ) ONE 10 PIN DISPLAY COLOR OUTPUT ( 1 ) ONE 3 PIN STEREO CONNECTOR ( WX9100 )
MANUFACTURER: HP / AMD
PART NUMBER: RADEON PRO WX 9100-HP
ENGINE SPECS:
ENGINE ARCHITECTURE: VEGA
STREAM PROCESSORS: 4096
COMPUTE UNITS: 64
GPU CLOCK: 1200 MHZ
BOOST CLOCK: 1500 MHZ
PEAK SINGLE PRECISION PERFORMANCE ( FP32 ): 12.3 TFLOPS ( TERAFLOPS )
PEAK DOUBLE PRECISION PERFORMANCE ( FP64 ): 769 TFLOPS ( TERAFLOPS )
LITHOGRAPHY: 14NM FINFET
MEMORY:
MEMORY CONFIGURATION: 16GB
MEMORY TYPE: HBM2
MEMORY INTERFACE WIDTH: 2048 BIT
MEMORY BANDWIDTH: 484 GB/S
ERROR CORECTION CODE ( ECC ): YES
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: RADEON PRO SOFTWARE, AMD XCONNECT TECHNOLOGY, VIDEO CODE ENGINE ( VCE ), RADEON VR READY CREATOR, RADEON PRO SOFTWARE DRIVER OPTIONS, HIGH BANDWIDTH CACHE CONROLLER ( HBC ), AMD EYEFINITY TECHNOLOGY ( PROFESSIONALS ), UNIFIED VIDEO DECODER ( UVD ), AMD DIRECTGMA TECHNOLGY, DIRECTX 12.0 ( FEATURE LEVEL 12_1 ), OPENGL 4.5, OPENCL 2.0, VULKAN 1.0
OPERATING SYSTEMS: MICROSOFT WINDOWS 7 ( 64 BIT ), MICROSOFT WINDOWS SERVER 2016 ( 64 BIT ), MICROSOFT WINDOWS 10 ( 64 BIT ), LINUX X86_64
DISPLAY SUPPORT:
MAXIMUM MDP RESOLUTION: 3840 X 2160 AT 60HZ ( 6 DISPLAYS AT 4K ) OR 5120 X 2880 AT 60HZ ( 3 DISPLAYS AT 5K ) OR 7680 X 4320 AT 60HZ ( 1 DISPLAY AT 8K )
MULTI MONITOR: YES
CONNECTIONS:
DISPLAY CONNECTORS: ( 6 ) SIX MINI DISPLAYPORTS MDP
ADDITIONAL CONNECTORS: ( 1 ) ONE 10 PIN DISPLAY COLOR OUTPUT ( 1 ) ONE 3 PIN STEREO OUTPUT
POWER CONNECTORS: ( 1 ) ONE 6 PIN CONNECTOR ( 1 ) ONE 8 PIN CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 230W
COOLING SYSTEM:
ACTIVE FANSINK - ( 1 ) ONE FAN BLOWER
FORM FACTOR:
DUAL SLOT, FULL LENGTH, FULL HEIGHT / HIGH PROFILE
