Product Details:

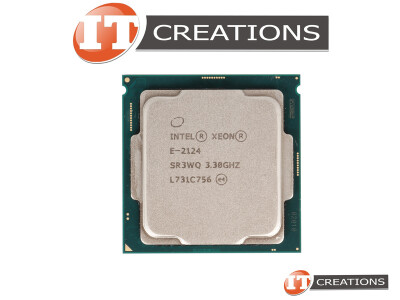

INTEL XEON QUAD CORE PROCESSOR E-2124 3.30GHZ 8MB SMART CACHE 8 GT/S DMI3 71W FCLGA1151 ( COFFEE LAKE )
MANUFACTURER: INTEL
PART NUMBER: SR3WQ
CPU SERIES: INTEL XEON E PROCESSOR FAMILY
PROCESSOR CODE NAME: COFFEE LAKE
SOCKETS SUPPORTED: FCLGA1151 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.30GHZ
CPU MAX TURBO FREQUENCY: 4.30GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.30GHZ
MULTI-CORE: QUAD-CORE ( 4 CORE )
THREADS: 4
CACHE: 8MB INTEL SMART CACHE
INTEL UPI SPEED: 8 GT/S
LITHOGRAPHY: 14NM
THERMAL DESIGN POWER: 71W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 2666 MHZ
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 41.6GB/S
ECC MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: 1X16 / 2X8 / 1X8 + 2X4
MAX NUM. OF PCI LANES: 16
ADVANCED TECHNOLOGIES
INTEL OPTANE MEMORY SUPPORTED: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: NO
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1 / INTEL SSE4.2 / INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
SECURITY & RELIABILITY
INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL ME
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
