DELL CPU KIT INTEL XEON GOLD 24 CORE PROCESSOR 6252 2.10GHZ 35.75MB CACHE TDP 150W FCLGA3647 (R740 6252)

Product Details:

DELL CPU KIT INTEL XEON GOLD 24 CORE PROCESSOR 6252 2.10GHZ 35.75MB CACHE TDP 150W FCLGA3647 FOR DELL EMC POWEREDGE R740

MANUFACTURER: DELL / INTEL
PART NUMBER: R740 6252
CPU SERIES: 2ND GEN INTEL XEON SCALABLE ( GOLD 6200 SERIES )
PROCESSOR CODE NAME: CASCADE LAKE
SOCKETS SUPPORTED: FCLGA3647 ( SOCKET P )
COMPATIBILITY: DELL EMC POWEREDGE R740

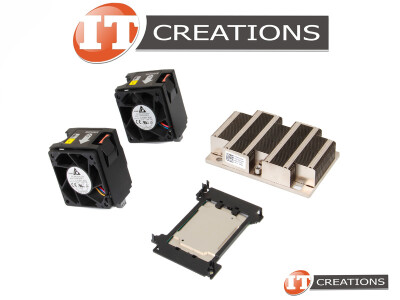

KIT INCLUDES: ( 1 ) ONE PROCESSOR ( 1 ) ONE HIGH PERFORMANCE HEATSINK ( 2 ) TWO STANDARD FANS

NOTE: X6 HIGH PERFORMANCE FANS REQUIRED FOR ALL SINGLE AND DUAL PROCESSOR CONFIGURATIONS WITH MID BAY, GPU AND / OR REAR BAY OPTIONS ( HIGH PERFORMANCE FAN KIT PN: 384-BBPZ )

PROCESSOR SPECIFICATIONS

CPU FREQUENCY: 2.10GHZ
CPU MAX TURBO FREQUENCY: 3.70GHZ
MULTI-CORE: 24-CORE
THREADS: 48
CACHE: 35.75MB
NUMBER OF UPI LINKS: 3
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 150W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1TB ( 1000GB )
MEMORY TYPES: DDR4-2933
MAX MEMORY SPEEDS: 2933 MHZ
MAX NUM. MEMORY CHANNELS: 6
ECC MEMORY SUPPORTED: YES
INTEL OPTANE DC PERSISTENT MEMORY SUPPORTED: YES

EXPANSION OPTIONS

SCALABILITY: 4S
PCI EXPRESSION REVISION: 3.0
MAX NUM. OF PCI LANES: 48

ADVANCED TECHNOLOGIES

INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: NO
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: NO
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TSX-NI: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES

SECURITY & RELIABILITY

INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBE ): YES
