Product Details:

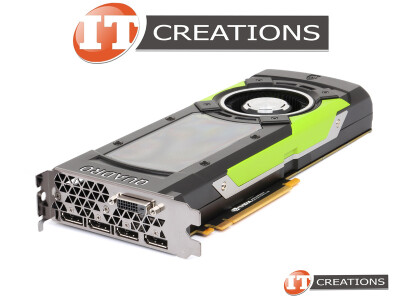

LENOVO NVIDIA QUADRO P6000 PASCAL GPU 24GB 3840 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5X MEMORY BANDWIDTH 432GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-D ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ( 2 ) TWO SLI INTERFACES ( 1 ) ONE SYNC 14 PIN CONNECTOR ( 1 ) ONE STEREO 4 PIN CONNECTOR ( 1 ) ONE 8 PIN POWER CONNECTOR
MANUFACTURER: LENOVO / NVIDIA
PART NUMBER: QUADRO P6000-LENOVO
ENGINE SPECS:
ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 3840
GPU CLOCK: 1506 MHZ
BOOST CLOCK: 1645 MHZ
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 432 GB/S
MEMORY CLOCK: 1127 MHZ ( EFFECTIVE: 9016 MHZ )
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC
DISPLAY SUPPORT:
MAXIMUM DP 1.4 RESOLUTION: 7820 x 4320 AT 30HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ
MULTI MONITOR: YES
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-D ( 4 ) FOUR DISPLAYPORTS DP
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 250W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR
COOLING SYSTEM:
( 1 ) ONE ACTIVE FANSINK
FORM FACTOR:
DUAL SLOT, FULL HEIGHT ( HIGH PROFILE )
