Product Details:

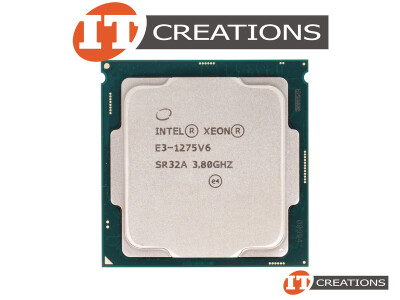

INTEL XEON QUAD CORE PROCESSOR E3-1275V6 3.80GHZ 8MB CACHE 8 GT/S DMI3 TDP 73W FCLGA1151 ( KABY LAKE )
MANUFACTURER: INTEL
PART NUMBER: E3-1275V6
CPU SERIES: INTEL XEON E3 V6 PROCESSOR SERIES
PROCESSOR CODE NAME: KABY LAKE
SOCKETS SUPPORTED: FCLGA1151 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1
COOLING DEVICE: NOT INCLUDED - PROCESSOR ONLY
PERFORMANCE
CPU FREQUENCY: 3.80GHZ
CPU MAX TURBO FREQUENCY: 4.20GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.20GHZ
MULTI-CORE: QUAD-CORE ( 4 CORE )
THREADS: 8
CACHE: 8MB INTEL SMART CACHE
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 73W
VID VOLTAGE RANGE: 0.55V-1.52V
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: YES
MEMORY SPECIFICATIONS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 64GB
MEMORY TYPES: DDR4-2400 / DD3L-1866
MAX NUMBER OF MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 37.5GB/S
ERROR CORRECTION CODE MEMORY ( ECC ): YES
PROFESSOR GRAPHICS
PROCESSOR GRAPHICS: INTEL HD GRAPHICS P630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.15 GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
GRAPHICS OUTPUT: EDP / DP / HDMI / DVI
4K SUPPORT: YES, AT 60 HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 24 HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60 HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60 HZ
MAX RESOLUTION ( VGA ): N/A
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.4
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X591D
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: 1X16 / 2X8 / 1X8 + 2X4
MAX # OF PCI EXPRESS LANES: 16
ADVANCED TECHNOLOGIES
INTEL OPTANE MEMORY SUPPORTED: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL vPRO TECHNOLOGY: YES
INTEL HYPER-THREADING TECHNOLOGY: NO
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET: 64-BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
SECURITY AND RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES, WITH INTEL ME
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
