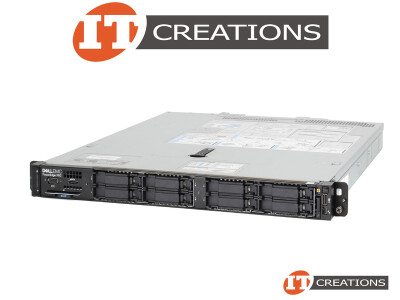

DELL EMC POWEREDGE XR2 INDUSTRIAL RACK SERVER 2.5 INCH (DELL XR2)

Product Details:

DELL EMC POWEREDGE XR2 INDUSTRIAL RACK SERVER 2.5 INCH SMALL FORM FACTOR SFF

MANUFACTURER: DELL
PART NUMBER: DELL XR2

NOTE: THIS MODEL IS A STANDARD OPTION ONLY, IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES
PROCESSOR CORES: UP TO 24 CORES PER PROCESSOR
PROCESSOR TDP: UP TO 150W PER PROCESSOR

MEMORY SUPPORT

MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY SIZE: UP TO 512GB ECC RDIMM / 2TB LRDIMM
MEMORY SPEEDS: DDR4-2666HZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )

STORAGE SUPPORT

HARD DRIVE SUPPORT: ( 8 ) EIGHT 2.5 INCH SFF HOT PLUG HARD DRIVES
FRONT BAY FORMAT: ( 8 ) EIGHT SATA OR SAS / ( 4 ) FOUR SATA OR SAS + ( 4 ) FOUR NVME / ( 6 ) SIX SATA OR SAS + ( 2 ) TWO NVME
ADDITIONAL STORAGE SUPPORT: M.2 SSD VIA PCIE BOSS CARD ( 2 X 480GB )
STORAGE TYPE: HDD / SDD / M.2
STORAGE PROTOCOL: SAS / SATA / NVME

-NOTE: M.2 PCIE BOSS CARD ARE OPTIONAL - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: ( 3 ) THREE PCI-E 3.0 SLOTS
PCI INTERFACE TYPE: 1X8 ( LOM RISER - SLOT1 ) / 2X16 LANES ( SLOT2 / SLOT3 )

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 550W ( PER POWER SUPPLY )

OPERATING SYSTEMS SUPPORTED

- WINDOWS SERVER
- RHEL
- SUSE LINUX ENTERPRISE SERVER
- UBUNTUS
- VSPHERE ESXI
- XENSERVER
