Product Details:

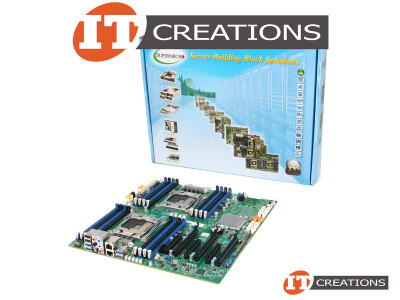

SUPERMICRO MOTHERBOARD - SYSTEM BOARD INTEL XEON E5-2600V3 / E5-2600V4 - INTEL I210 DUAL GBE LAN PORTS ( MBD-X10DAI-O )
MANUFACTURER: SUPERMICRO
PART NUMBER: X10DAI-NEW
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 2 ) TWO PROCESSORS
SOCKET TYPE: FCLGA2011-3 ( R3 SOCKET )
PROCESSOR TYPE: INTEL XEON E5-2600V3 / E5-2600V4 SERIES
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 16 TOTAL MEMORY SLOTS
MEMORY TYPE: DDR4 2400MHZ ECC 3DS LOAD REDUCED / REGISTERED
MEMORY SIZE CAPACITY: UP TO 2TB LRDIMM / 1TB RDIMM
CHIPSET DETAIL
INTEL C612 ( PCH )
NETWORK
I210 GIGABIT ( 100 / 1000MB/S ) X2 PORTS ( LAN1 / LAN2 )
STORAGE DETAIL
CONNECTORS: X6 SATA 3.0 ( SUPPORTED BY INTEL PCH ), X4 SATA 3.0 ( SUPPORTED BY INTEL SCU )
RAID SUPPORT: RAID 0, RAID 1, RAID 5, RAID 10
SLOT DETAIL
INTERFACES: X3 PCI-E 3.0 X16 SLOTS ( CPU1 SLOT1 / CPU1 SLOT3 / CPU2 SLOT5 ), PCI-E 3.0 X8 SLOTS ( CPU2 SLOT2 / CPU2 SLOT4 ), PCI-E 3.0 X4 ( X8 WIRED; PCH SLOT6 )
ADDITIONAL INFORMATION
FORM FACTOR: E-ATX ( EXTENDED ADVANCED TECHNOLOGY EXTENDED 12 INCH X 13 INCH )
HEATSINK COMPATIBILITY: 2U SNK-P0048P / 4U SNK-P0050AP4 ( DEPENDENT ON CHASSIS FORM FACTOR )
2U CHASSIS COMPATIBILITY: 213A-R740LPB / 216BAC-R920LPB / 825TQ-R740LPB / 826BA-R920LPB
3U CHASSIS COMPATIBILITY: SC835BTQ-R1K28B / SC835TQ-R920B / SC836BA-R1K28B / SC836BA-R920B
4U CHASSIS COMPATIBILITY: SC743TQ-1200B / SC745BTQ-R1K28B-SQ / SC747BTQ-R1K62B / SC745TQ-R920B / SC747TG-R1400B-SQ / SC846BA-R920B / SC846BE1C-R1K28B / SC847BE1C-R1K28LPB / SC847BE2C-R1K28LPB
SERVER COMPATIBILITY: SYS-7038A-I ( CSE-732D4-903B ) / SYS-7048A-T ( CSE-743TQ-1200B-SQ )
