Product Details:

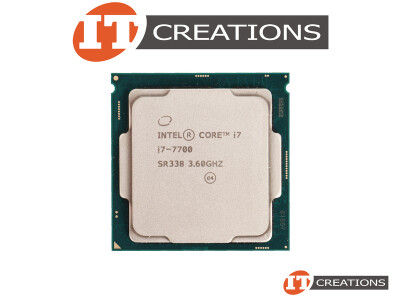

INTEL CORE I7 QUAD CORE PROCESSOR I7-7700 3.60GHZ 8MB SMART CACHE 8 GT/S BUS SPEED TDP 65W FCLGA1151 ( KABY LAKE )
MANUFACTURER: INTEL
PART NUMBER: CM8067702868314
CPU SERIES: 7TH GEN INTEL CORE I7 PROCESSORS FAMILY
PROCESSOR CODE NAME: KABY LAKE
SOCKETS SUPPORTED: FCLGA1151 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1
COOLING DEVICE: NOT INCLUDED - PROCESSOR ONLY
PERFORMANCE
CPU FREQUENCY: 3.60GHZ
CPU MAX TURBO FREQUENCY: 4.20GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.20GHZ
MULTI-CORE: QUAD-CORE ( 4 CORE )
THREADS: 8
CACHE: 8MB INTEL SMART
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER ( TDP ): 65W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: YES
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 64GB
MEMORY TYPES: DDR4-2133 / DRR4-2400 / DRR3-1333 AT 1.35V / DDR3-1600 AT 1.35V
MAX NUM. MEMORY CHANNELS: 2
ECC MEMORY SUPPORTED: NO
PROCESSOR GRAPHICS
PROCESSOR GRAPHICS: INTEL HD GRAPHICS 630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.15 GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2304 AT 24HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X5912
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 3.0
PCI EXPRESS CONFIGURATIONS: UP TO 1X16, 2X8, 1X8 + 2X4
MAX NUMBER OF PCI EXPRESS LANES: 16
ADVANCED TECHNOLOGIES
INTEL OPTANE MEMORY SUPPORTED: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
INTEL STABLE IMAGE PLATFORM PROGRAM ( SIPP ): YES
SECURITY & RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES, WITH INTEL ME
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
