Product Details:

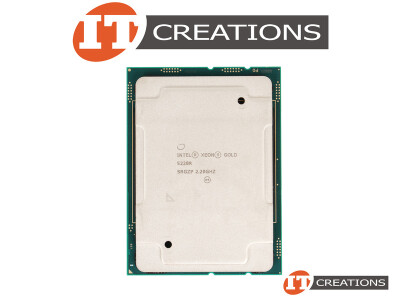

INTEL XEON GOLD 24 CORE PROCESSOR 5220R 2.20GHZ 35.75MB CACHE TDP 150W FCLGA3647 ( CASCADE LAKE )
MANUFACTURER: INTEL
PART NUMBER: GOLD 5220R
CPU SERIES: 2ND GEN INTEL XEON SCALABLE ( GOLD 5200 SERIES )
PROCESSOR CODE NAME: CASCADE LAKE
SOCKETS SUPPORTED: FCLGA3647 ( SOCKET P )
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.20GHZ
CPU MAX TURBO FREQUENCY: 4.00GHZ
MULTI-CORE: 24-CORE
THREADS: 48
CACHE: 35.75MB
NUMBER OF UPI LINKS: 2
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 150W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1TB ( 1000GB )
MEMORY TYPES: DDR4-2667
MAX MEMORY SPEEDS: 2667 MHZ
MAX NUM. MEMORY CHANNELS: 6
ECC MEMORY SUPPORTED: YES
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 3.0
MAX NUM. OF PCI LANES: 48
ADVANCED TECHNOLOGIES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: NO
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: NO
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: YES
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 1
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBE ): YES
