Product Details:

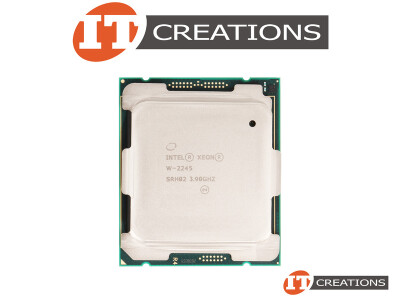

INTEL XEON 8 CORE PROCESSOR W-2245 3.90GHZ BASE / 4.50GHZ MAX 16.5MB CACHE 8 GT/S BUS SPEED TDP 155W FCLGA2066 ( CASCADE LAKE ) - 4.70GHZ TURBO BOOST TECHNOLOGY 3.0
MANUFACTURER: INTEL
PART NUMBER: CD8069504393801
CPU SERIES: INTEL XEON W PROCESSOR
PROCESSOR CODE NAME: CASCADE LAKE
SOCKETS SUPPORTED: FCLGA2066
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.90GHZ
CPU MAX TURBO FREQUENCY: 4.50GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 4.70GHZ
MULTI-CORE: 8-CORE
THREADS: 16
CACHE: 16.5MB
INTEL UPI SPEED: 8GT/S
MAX NUMBER UPI LINKS: 0
LITHOGRAPHY: 14NM
THERMAL DESIGN POWER: 155W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1TB ( 1000GB )
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 2933 MHZ
MAX NUM. MEMORY CHANNELS: 4
MAX MEMORY BANDWIDTH: 93.85GB/S
PHYSICAL ADDRESS EXTENSIONS: 46 BIT
ECC MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 3.0
PCI EXPRESSION REVISION: X4 / X8 / X16
MAX NUM. OF PCI LANES: 48
ADVANCED TECHNOLOGIES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL OPTANE MEMORY SUPPORTED: NO
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST MAX TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL DEMAND BASED SWITCHING: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL FLEX MEMORY ACCESS: NO
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL VPRO ELIGIBILITY: INTEL VPRO PLATFORM
INTEL ADVANCED ENCRYPTION STANDARD AES NEW
INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): NO
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
