Product Details:

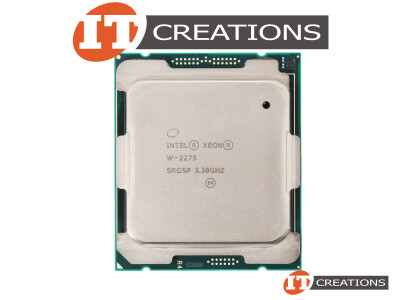

INTEL XEON 14 CORE PROCESSOR W-2275 3.30GHZ BASE / 4.60GHZ MAX 19.25MB CACHE 8 GT/S BUS SPEED TDP 165W FCLGA2066 ( CASCADE LAKE )
MANUFACTURER: INTEL
PART NUMBER: W-2275
CPU SERIES: INTEL XEON W PROCESSOR SERIES
PROCESSOR CODE NAME: CASCADE LAKE
SOCKETS SUPPORTED: FCLGA2066
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.30GHZ
CPU MAX TURBO FREQUENCY: 4.60GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 4.80GHZ
MULTI-CORE: 14-CORE
THREADS: 28
CACHE: 19.25MB
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
MAX NUMBER UPI LINKS: 0
THERMAL DESIGN POWER: 165W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 1TB ( 1000GB )
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 2933 MHZ
MAX NUM. MEMORY CHANNELS: 4
MAX MEMORY BANDWIDTH: 93.85GB/S
PHYSICAL ADDRESS EXTENSIONS: 46 BIT
ERROR CORRECTION CODE MEMORY ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 3.0
PCI EXPRESSION REVISION: X16 / X8 / X4
MAX NUM. OF PCI LANES: 48
ADVANCED TECHNOLOGIES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ) ON CPU: YES
INTEL OPTANE MEMORY SUPPORTED: NO
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
INTEL DEMAND BASED SWITCHING: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL VPRO ELIGIBILITY: INTEL VPRO PLATFORM
INTEL ADVANCED ENCRYPTION STANDARD AES NEW
INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): NO
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRUALIZATION TECHNOLGOY FOR DIRECTED I/O
( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
