Product Details:

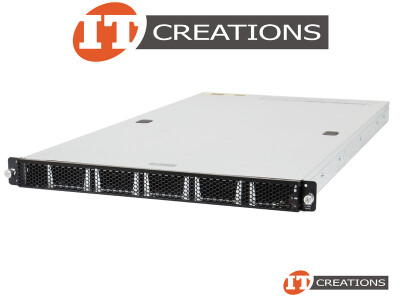

HPE CLOUDLINE CL3150 G10 RACK 2.5 INCH SFF 24 BAY NHPHD HPPS 1U SERVER CHASSIS ( GEN10 ) - SMALL FORM FACTOR 24B / 24SFF CABLED / NON HOT PLUG HARD DRIVE HOT PLUG POWER SUPPLY
MANUFACTURER: HP
PART NUMBER: HP CL3150 G10
NOTE: THIS MODEL IS A 2.5 INCH SFF 24 BAY SATA / PCIE NVME STANDARD OPTION ONLY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 1 ) ONE CPU
PROCESSOR SOCKET TYPE: SP3
PROCESSOR COMPATIBILITY: 1ST GEN AMD EPYC PROCESSOR FAMILY ( NAPLES 7001 SERIES )
PROCESSOR CORE COUNT: UP TO 32 CORES PER SOCKET
PROCESSOR TDP: UP TO 180W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 8 ) EIGHT DIMM SLOTS
LRDIMM MEMORY SIZE CAPACITY: UP TO 512GB
RDIMM MEMORY SIZE CAPACITY: UP TO 512GB
MEMORY SPEEDS: DDR4-2666MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 1 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT PLUG HARD DRIVES
STORAGE TYPE: SDD
STORAGE PROTOCOL: SATA / PCIE NVME
MAX STORAGE SIZE:
- 7.68TB ( SATA SSD )
- 76.8TB ( PCIE NVME SSD )
NOTE:
- SUPPORTS 24 PCIE NVME CONFIGURATIONS OR 22 PCIE NVME + 2 SATA
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 1 ) ONE PCI-E SLOTS ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 1X16 HH ( STANDARD )
- 1X16 OCP 2.0 MEZZANINE SLOT ( MEZZANINE EXPANSION OPTIONAL )
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 1600W
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2012 R2
- MICROSOFT WINDOWS SERVER 2016: ESSENTIALS, STANDARD, DATACENTER
- SUSE LINUX ENTERPRISE SERVER ( SLES ): 12 SP2 ( 64 BIT )
- SUSE LINUX ENTERPRISE SERVER ( SLES ): 12 SP3 ( 64 BIT )
- UBUNTU 16.04 ( TEST ONLY )
- RHEL 7.4 ( 64 BIT )
- VMWARE ESXI 6.5 U1
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED OCTOBER 2018 - INFORMATION MAY CHANGE
