Product Details:

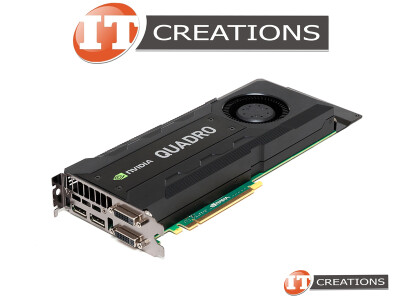

DELL NVIDIA QUADRO K5200 KEPLER GPU 8GB 2304 CUDA PARALLEL CORES MEMORY INTERFACE 256 BIT GDDR5 MEMORY BANDWIDTH 192GB/S PCI-E 3.0 X16 ( 1 ) ONE DUAL LINK DVI-I CONNECTOR ( 1 ) ONE DUAL LINK DVI-D CONNECTOR ( 2 ) TWO DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD
MANUFACTURER: DELL / NVIDIA
PART NUMBER: QUADRO K5200-DELL
ENGINE SPECS:
ENGINE ARCHITECTURE: KEPLER
CUDA CORES: 2304
GPU CLOCK: 667 MHZ
BOOST CLOCK: 771 MHZ
SINGLE PRECISION PERFORMANCE: 3.5 TFLOPS ( TERAFLOPS )
MEMORY:
MEMORY CONFIGURATION: 8GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 192 GB/S
MEMORY CLOCK: 1502 MHZ ( EFFECTIVE: 6008 MHZ )
ERROR CORECTION CODE ( ECC ): YES
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.0, OPENGL 4.5, DIRECTX 11.2, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC COMPATIBILITY, NVIDIA NVIEW DESKTOP, HDCP SUPPORT, NVIDIA MOSAIC
OPERATING SYSTEMS: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, LINUX
DISPLAY SUPPORT:
MAXIMUM DP 1.2 RESOLUTION: 4096 X 2160 AT 60HZ
MAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZ / 1920 X 1200 AT 120HZ
MAXIMUM DVI-D SL RESOLUTION: 1920 X 1200 AT 60HZ
MAXIMUM VGA RESOLUTION: 2048 X 1536 AT 85HZ
MULTI MONITOR: YES ( UP TO 4 DISPLAYS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I CONNECTOR ( 1 ) ONE DUAL LINK DVI-D CONNECTOR ( 2 ) TWO DISPLAYPORTS CONNECTOR
ADDITIONAL CONNECTORS: ( 1 ) ONE SDI / SYNC INTERFACE ( 1 ) ONE SLI INTERFACE ( 1 ) ONE 4 PIN STEREO
POWER CONNECTORS: ( 1 ) ONE 6 PIN POWER CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 150W
COOLING SYSTEM:
ACTIVE FANSINK - ( 1 ) ONE FAN BLOWER
FORM FACTOR:
DUAL SLOT, FULL LENGTH, FULL HEIGHT / HIGH PROFILE
