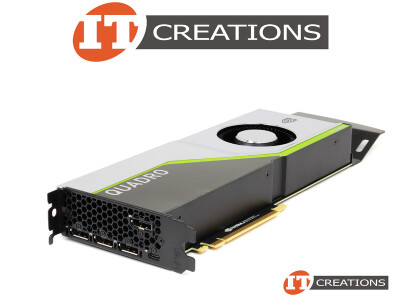

Product Details:
HP NVIDIA QUADRO RTX 8000 TURING GPU 48GB 4608 CUDA CORES MEMORY INTERFACE 384 GDDR6 MEMORY BANDWIDTH 672GB/S PCI-E 3.0 X16 ( 4 ) FOUR DISPLAYPORTS DP ( 1 ) ONE USB TYPE C GRAPHICS PROCESSING UNIT VIDEO CARD - 576 TENSOR CORES ( 1 ) ONE NVLINK INTERFACE ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
MANUFACTURER: HP / NVIDIA
PART NUMBER: 6NB51AA
ENGINE SPECS:
ENGINE ARCHITECTURE: TURING
CUDA CORES: 4608
TENSOR CORES: 576
NVIDIA RT CORES: 72
RTX-OPS: 84T
RAYS CAST: 11 GIGA RAYS/SEC
SINGLE PRECISION FLOATING PERFORMANCE ( FP32 ): 16.31 TFLOPS ( TERA FLOPS )
HALF PRECISION FLOATING PERFORMANCE ( FP16 ): 32.62 TFLOPS ( TERA FLOPS )
GPU CLOCK: 1395 MHZ
BOOST CLOCK: 1770 MHZ
PROCESS ( NM ): 12
MEMORY:
MEMORY CONFIGURATION: 48GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 672 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: REAL-TIME RAY TRACING, NVIDIA GEFORCE EXPERIENCE, NVIDIA NVLINK ( SLI READY VIA BRIDGE ADAPTER / 100GB/S BIDIRECTIONAL ), DIRECTX 12.0, SHADER MODEL 5.1, OPENGL 4.6, VULKAN 1.1, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, VIRTUALLINK CONNECTOR, DISPLAYPORT WITH AUDIO, VGA SUPPORT ( VIA ADAPTER CONNECTOR/BRACKET ), 3D STEREO SUPPORT ( VIA STEREO CONNECTOR ), NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY ( CARD, NVIDIA NVIEW DESKTOP MANAGEMENT SOFTWARE, HDCP 2.2 SUPPORT, NVIDIA MOSAIC, PCI EXPRESS GEN3
OPERATING SYSTEMS: MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX
DISPLAY SUPPORT:
MULTI MONITOR: YES ( UP TO 4 MONITORS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP ( 1 ) ONE USB TYPE C ( VIRTUALLINK )
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
ADDITIONAL CONNECTORS: ( 1 ) ONE NVLINK INTERFACE ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
BOARD MAX POWER CONSUMPTION ( W ): 295W
GRAPHICS POWER CONSUMPTION ( W ): 260W
COOLING SYSTEM:
ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE ACTIVE FAN BLOWER )
FORM FACTOR:
DUAL SLOT, FULL HEIGHT
DIMENSIONS:
10.5 INCH ( L ) X 4.4 INCH ( H )
