Product Details:

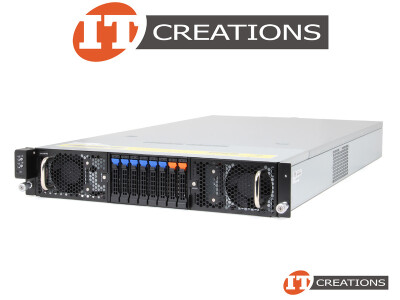

GIGABYTE G292-Z20 2.5 INCH SFF 8 BAY HSHD HSPS X8 GEN4 GPU PRE CONFIGURATION 2U SERVER CHASSIS ( MICROCHIP SOLUTION ) ( AI / AI TRAINING / AI INFERENCE / HPC ) - SUPPORTS ( 1 ) ONE SP3 SOCKET ( COMPATIBLE WITH 3RD GEN AMD EPYC PROCESSORS - 7003 SERIES / 2ND GEN AMD EPYC PROCESSORS - 7002 SERIES ) ( 8 ) EIGHT DDR4 DIMM SLOTS ( 2 ) TWO 10GB/S SFP+ LAN PORTS ( MELLANOX CONNECTX-4 LX ) ( 1 ) ONE 10 / 100 / 1000 MANAGEMENT LAN PORT UP TO ( 10 ) TEN PCI-E 4.0 X16 SLOTS ( 8X16 GEN4 FOR GPUs / 2X16 G4 HHHL ) - ( 1 ) ONE M.2 PCIE GEN3 X4 NVME / ( 1 ) ONE M.2 PCIE GEN3 X2 NVME INTERFACE + SMALL FORM FACTOR 8B / 8SFF ( X6 SATA / SAS X2 PCI-E U.2 ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY ( G292Z20 )
MANUFACTURER: GIGABYTE
PART NUMBER: G292-Z20-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 2200W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSOR SERIES ( 7003 ) / 2ND GEN AMD EPYC PROCESSOR SERIES ( 7002 )
PROCESSOR TDP: UP TO 280W
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- IF ONLY 1 CPU SOCKET IS POPULATED, SOME PCIE OR MEMORY FUNCTIONS MIGHT BE UNAVAILABLE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: ( 8 ) EIGHT DIMM SLOTS
MEMORY SIZE: UP TO 128GB ECC RDIMM / LRDIMM OR 256GB 3DS RDIMM / 3DS LRDIMM
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- SUPPORTS INTEL OPTANE DC PERSISTENT MEMORY ( DCPMM 2933MHZ / 2666MHZ / 2400MHZ / 2133MHZ )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 8 ) EIGHT 2.5 INCH SFF HOT SWAP HARD DRIVES ( X6 SATA / SAS + X2 PCIE NVME U.2 )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE NVME M.2 ( M KEY 2242 / 2260 / 2280 / 22110 )
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S ) / PCIE NVME
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- SAS CARD REQUIRED FOR SAS DEVICES SUPPORT
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 10 ) TEN PCIE SLOTS
PCI INTERFACE TYPE: ( 8 ) EIGHT PCI-E 4.0 X16 ( DESIGNED FOR GPUs ) / ( 2 ) TWO PCI-E 4.0 X16 HHHL
NETWORKING
- ( 2 ) TWO 10GB/S SFP+ LAN PORTS ( MELLANOX CONNECTX-4 LX )
- ( 1 ) ONE DEDICATED MANAGEMENT PORT
POWER SUPPLY
- ( 2 ) TWO 2200W POWER SUPPLIES ( C19 TYPE POWER CORD REQUIRED )
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016 ( X2APIC / 256T NOT SUPPORTED )
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2022
- RED HAT ENTERPRISE LINUX 8.3 ( X64 ) OR LATER
- RED HAT ENTERPRISE LINUX 9.0 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 12 SP5 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 15 SP5 ( X64 ) OR LATER
- UBUNTU 18.04.5 LTS ( X64 ) OR LATER
- UBUNTU 20.04 LTS ( X64 ) OR LATER
- UBUNTU 22.04 LTS ( X64 ) OR LATER
- VMWARE ESXI 6.7 UPDATE3 P03 OR LATER
- VMWARE ESXI 7.0 UPDATE3 UPDATE1 OR LATER
- VMWARE ESXI 8.0 OR LATER
- CITRIX HYPERVISOR 8.2.0 OR LATER
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE DOCUMENTATION DATED 2021 - INFORMATION MAY CHANGE
