Product Details:

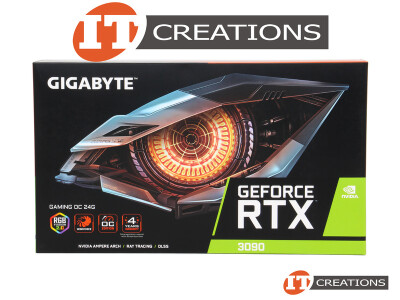

GIGABYTE NVIDIA GEFORCE RTX 3090 GAMING OC 24G GPU 24GB 10496 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6X MEMORY BANDWIDTH 936GB/S PCI-E 4.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 2 ) TWO HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - AMPERE ARCHITECTURE RGB FUSION 2.0
MANUFACTURER: GIGABYTE / NVIDIA
PART NUMBER: GV-N3090GAMING OC-24GD-RET
INCLUDES: GIGABYTE GEFORCE RTX 3090 GAMING OC 24G GPU WITH QUICK GUIDE ONLY - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: AMPERE
CUDA CORES: 10496
TENSOR CORES: 328
BASE CLOCK: 1395 MHZ
BOOST CLOCK: 1755 MHZ
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR6X
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 936 GB/S
MEMORY CLOCK: 19,500 MHZ
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
SUPPORTED TECHNOLOGIES: AORUS ENGINE, 2ND GEN RT CORES, 3RD GEN TENSOR CORES, WINDFORCE 3X COOLING SYSTEM, RGB FUSION 2.0, OVERCLOCKING, NVIDIA DLSS, NVIDIA REFLEX, NVIDIA GSYNC, NVIDIA STUDIO, NVIDIA BROADCAST, DIRECTX 12 ULTIMATE, OPENGL 4.6, PROTECTION METAL BACK PLATE, LARGE COPPER PLATE AND HEAT PIPES DIRECT TOUCH, DUAL BIOS ( SILENT MODE OR OC MODE ), PCI EXPRESS GEN4
NVLINK SUPPORT: YES, 2-WAY
OPERATING SYSTEMS: MICROSOFT WINDOWS 7 64 BIT / MICROSOFT WINDOWS 10 64 BIT
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION: 7820 X 4320 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 MONITORS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS DP ( 2 ) TWO HDMI
POWER CONNECTORS: ( 2 ) TWO 8 PIN
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 350W
RECOMMENDED SYSTEM POWER ( W ): 750W
COOLING SYSTEM:
ACTIVE - ( 3 ) THREE ACTIVE FANS ( WINDFORCE 3X COOLING SYSTEM WITH ALTERNATE SPINNING )
LARGE COPPER PLATE AND HEAT PIPES DIRECT TOUCH TO GPU
FORM FACTOR:
TRIPLE SLOT, FULL HEIGHT
DIMENSION:
12 1/2 INCH ( L ) X 4 5/8 INCH ( W ) X 2 1/8 INCH ( H )
