Product Details:

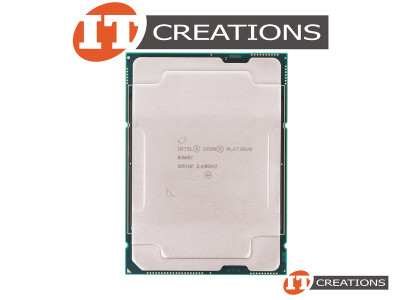

INTEL XEON PLATINUM 36 CORE PROCESSOR 8360Y 2.40GHZ BASE / 3.50GHZ MAX 54MB CACHE TDP 250W FCLGA4189 ( ICE LAKE ) ( 3RD GEN SCALABLE ) - SPEEDSELECT TECHNOLOGY - PERFORMANCE PROFILE SST-PP / SPEED SELECT
MANUFACTURER: INTEL
PART NUMBER: PLATINUM 8360Y
CPU SERIES: 3RD GEN INTEL XEON SCALABLE ( PLATINUM 8300 SERIES )
PROCESSOR CODE NAME: ICE LAKE
SOCKETS SUPPORTED: FCLGA4189
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.40GHZ
CPU MAX TURBO FREQUENCY: 3.50GHZ
MULTI-CORE: 36-CORE
THREADS: 72
CACHE: 54MB
INTEL UPI SPEED: 11.2 GT/S
NUMBER OF UPI LINKS: 3
LITHOGRAPHY: 10NM
THERMAL DESIGN POWER: 250W
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
CONFIG 0: 32 CORE / 2.2GHZ / 205W
CONFIG 1: 24 CORE / 2.8GHZ / 185W
CONFIG 2: 16 CORE / 3.2GHZ / 185W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 6TB ( 6,000GB )
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 3200 MHZ
MAX NUM. MEMORY CHANNELS: 8
ECC MEMORY SUPPORTED: YES
INTEL OPTANE DC PERSISTENT MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 4.0
MAX NUM. OF PCI LANES: 64
ADVANCED TECHNOLOGIES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS NEW INSTRUCTIONS ( INTEL TSX-NI ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBE ): YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 64GB
INTEL CRYPTO ACCELERATION: YES
